Documentation for Axxon Next 4.4.6. Documentation for other versions of Axxon Next is available too.

Previous page The PTZ Object  The Channel object Next page

With Axxon Next, you can control the Wash&Wiper feature in some Axis IP devices (M7016, P7216, Q7404, Q7436 ) using HTTP-CGI commands.

To set HTTP-CGI commands, do as follows:

  1. Create presets for the camera, numbered as follows: 101, 102, 103 and 104 (see Creating and editing presets).

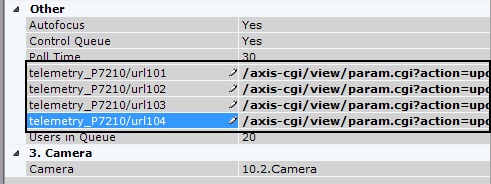

  2. Go to the PTZ object  and specify commands in the appropriate fields.

    Note

    The corresponding Camera object  should have the Send settings to device option enabled (see The Video Camera Object).

  3. Click the Apply button.

When the camera goes to the presets 101-104,  this triggers a pre-configured command.
