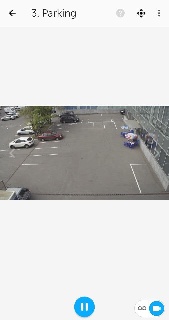

You can control PTZ cameras. To do this, go to viewing the video from the PTZ camera and click the
button in the upper right corner.
Note
When you switch to PTZ camera control, the mjpeg playback format will be automatically selected (see Configuring video in AxxonNet client on Android OS) and the video image quality will be reduced.
As a result, the PTZ control panel will be displayed at the bottom of the screen.
| On this page |
|---|
Controlling the PTZ camera
To control the camera, click the Moving button
. Use the gray circle that simulates the movement of the joystick to point the camera lens to the required position.
To change the control mode, click the
button and select one of the modes:
- Continuous - continuous camera movement.
- Relative - relative camera movement.
Scale correction
To zoom in/out the video, click the Correct button
. Use the Zoom slider to zoom in or out on the video. Use the Focus slider to focus the video image.
Presets
To go to the list of presets for the camera position, click the Presets button
. If there are any presets, they will be displayed.
To save the current preset, click the Add preset button. In the window that opens, enter the name of the preset and click OK.
Exit the PTZ control
After you complete working with the PTZ camera, click the
button. As a result, the PTZ control panel will be hidden.
