These actions start and stop a specific layout slideshow (see Selection and Slideshow of Layouts) on the selected operator monitor for the assigned role.

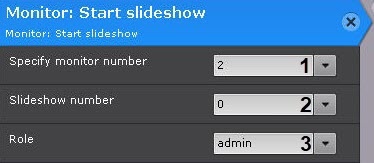

To configure the Start slideshow action, set the following parameters:

  1. Select the monitor number from the Specify monitor number drop-down list (1).

    Note

    If you select a dash (−) when selecting a monitor, the slideshow will run for the active monitor.

  2. Select the number from the Slideshow number drop-down list (2).

    Note

    The list starts with a zero. For example, Slideshow #1 in the Layouts interface will have the number 0.

  3. Select the role for which the macro will function from the Role drop-down list (3).

    Note

    If you leave the Role field empty, the macro will function for all roles that have access to this rule.

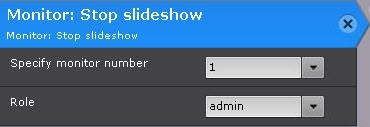

The Stop slideshow action is configured in the same way. The macro stops the slideshow being played.

Note

To stop the slideshow of the layouts, you can also select any video surveillance window by clicking the left mouse button. After restarting the Client, the slideshow resumes.
