Exporting an image in AxxonNet client on Android OS

To export an image, do the following in the live or archive viewing mode:

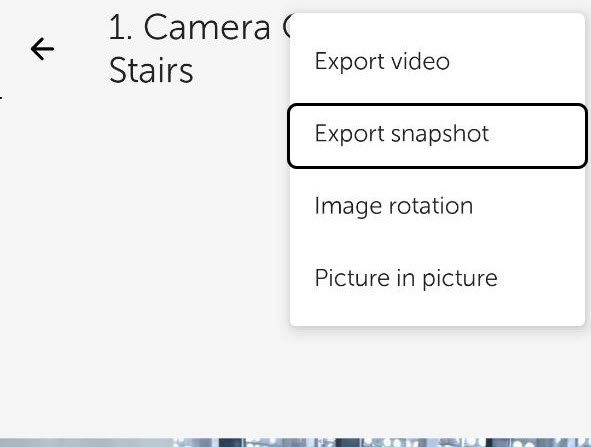

1. Click the  button. As a result, the Export window opens.


2. Select the media type - Image (1).

3. Select the required image file format (2):
   • JPG;
   • PDF.
4. Using the slider (3), select the timepoint of the image to be exported (using the slider, you can select a timepoint from no later than 2 minutes from the current time).
5. To select an arbitrary timepoint, click on the image (4) and select the timepoint in the appeared window.

6. Click the Export button (5) to start exporting the image.

   Note

   To cancel the image export, click Cancel (6).

7. As a result, the image export progress will be displayed in the notification panel. To cancel the image export, click Cancel on the AxxonNet notification.
   After the image has been exported, the export status will be displayed.



   Attention!

   The image is exported to the following path: /Internal memory/Pictures/Axxon/. The information about the date (the current date if the image was exported in the live view mode, or the archive date), the Server name and the video camera name will be added to the image.

8. To view the image, click the Open button on the AxxonNet notification.

9. To share the image, click the Share button on the AxxonNet notification.

The image export is complete.
