Configuring the Castle server connection to ACFA Intellect

To configure the Castle server connection to ACFA Intellect, do the following:

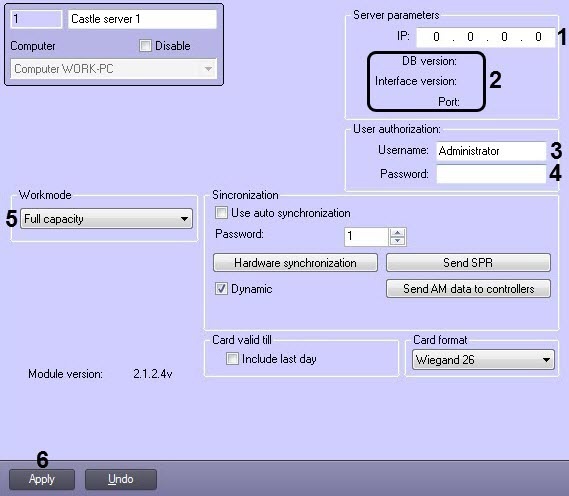

Go to the settings panel of the Castle server object.
In the Server parameters field (1), enter the IP address of the Castle server.
Note.
The following information is displayed in the area (2):
- DB version - the version of Sigur ACS database;
- Interface version - the version of the data exchange protocol between Sigur server and ACFA Intellect;
- Port - the port used for the Sigur server-ACFA Intellect connection.
In the Synchronization (3) and Username (4) fields, enter the username and password, respectively, used to login to the Castle ACS Client software (see the official reference documentation for the Castle ACS).
From the Workmode drop-down list (5), select the operation mode of the Castle server:
- Full capacity - configuration, management and monitoring are available.
- Monitoring - only management and monitoring are available. Also, the Synchronization and management of Castle ACS configuration and Configuring the Castle user access cards will be unavailable.
Click the Apply button to save the changes (6).

The Castle server connection to ACFA Intellect is now configured.
