Documentation for Axxon PSIM 1.0.0-1.0.1.

Previous page Configuring the connection to the LDAP address book  Examples of LDAP Service configuration Next page


Default correspondence between address attributes and Axxon PSIM DB fields is given in General information about the Service LDAP module section. The correspondence between attributes and fields for unique ID and department name can be modified.

Configure correspondence between address attributes and Axxon PSIM DB fields as follows:

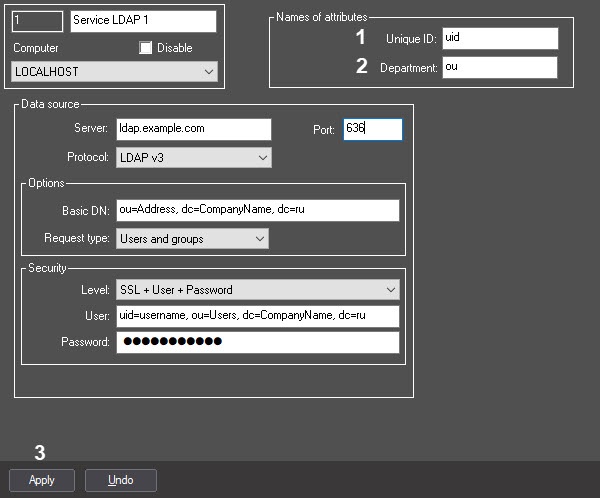

  1. Go to the settings panel of the LDAP Service object.
  2. In the Unique ID field specify the attribute name that is a unique ID corresponding to external_id parameter of the User object in Axxon PSIM (1).
  3. In the Department field specify the attribute name that is the name of the department and corresponding to the name field of the Department object in Axxon PSIM (2).
  4. To save the changes click the Apply button (3).

Configuration of correspondence between address attributes and Axxon PSIM DB fields is now complete.
