To select the model and installation type of a Speed-trap device, do the following:

  1. Go to the Speed traps server object.

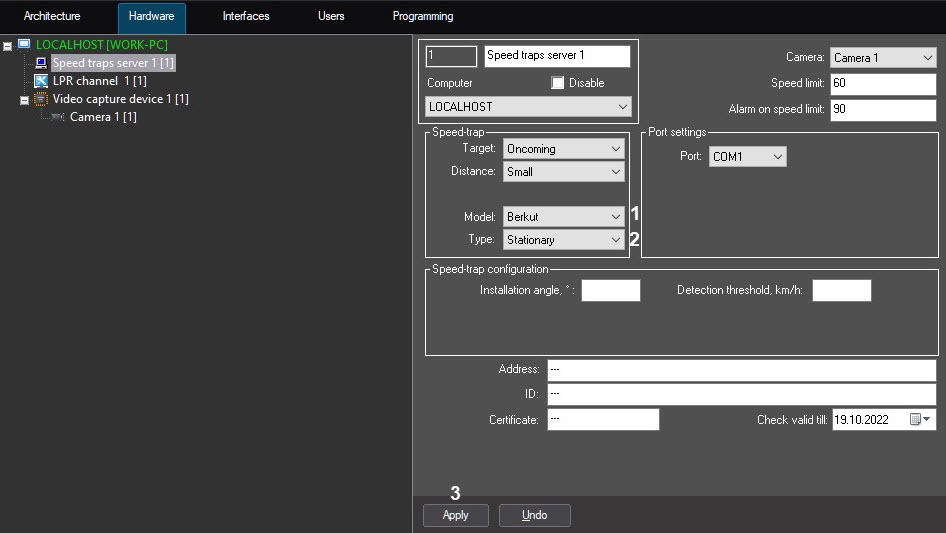

  2. From the Model drop-down list (1) select the model of the supported installed Speed-trap device.

    Attention!

    Correct operation of the Iskra-1, Iskra-1B, Iskra-1D, Iskra-1KRIS models is not guaranteed.

  3. From the Type drop-down list select the installation mode of Speed-trap device (2):
    • Stationary − if the Speed-trap device is installed stationary.

    • Moving − if the Speed-trap device is installed on moving vehicles.

      Note

      The availability of the Type drop-down list depends on the selected Speed-trap device model.

  4. Click Apply (3).

The process of selecting the module and installation mode of Speed-trap device is completed.
