The PERIDECT+ PIDs connection to ACFA PSIM is configured as follows:

  1. Go to the settings panel of the Security equipment object, which is created on the basis of the Computer object on the Hardware tab of the System settings dialog box.

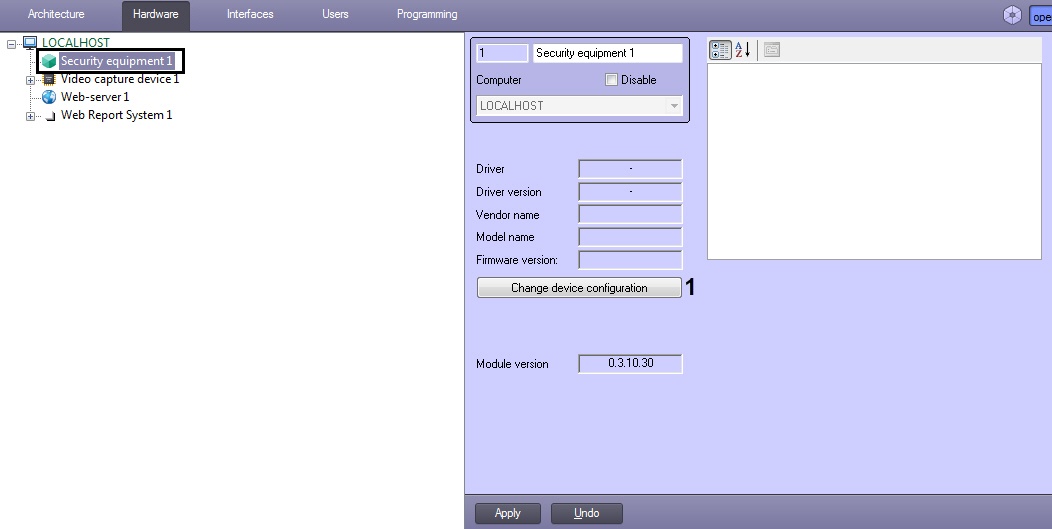

  2. On the settings panel of the Security equipment object, click the Change device configuration button (1).

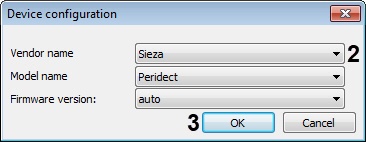

  3. Select Sieza from the Vendor name drop-down list (2).



    Note

    All other parameters will be filled in automatically.

  4. Click OK button (3).

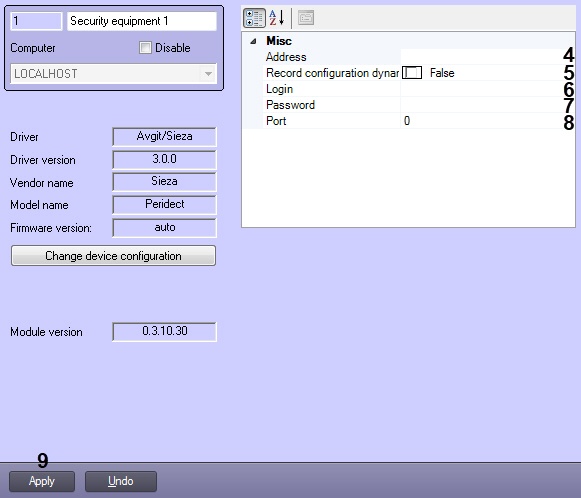

  5. In the Address field (4), enter the IP address of the CUP+ device.

  6. Set the Record configuration dynamically parameter (5) to True if you want any changes made in ACFA PSIM to be automatically written to the device, otherwise False, i.e. changes will not be written to the device.

  7. In the Login (6) and Password (7) fields, enter the login and password, respectively, to connect to the CUP+ device, if they have been installed.

  8. In the Port field (8) specify port 80.

  9. Click the Apply button (9).
