Documentation for ACFA PSIM 1.3.

Previous page Connecting the PERIDECT+ PIDs to ACFA PSIM  Configuring the PERIDECT+ detection sensors Next page

After connecting the PERIDECT+ software to ACFA PSIM, the Processor object will be automatically created under the Security equipment object, which corresponds to the CUP+ device.

To configure the PERIDECT+ line controller, do the following:

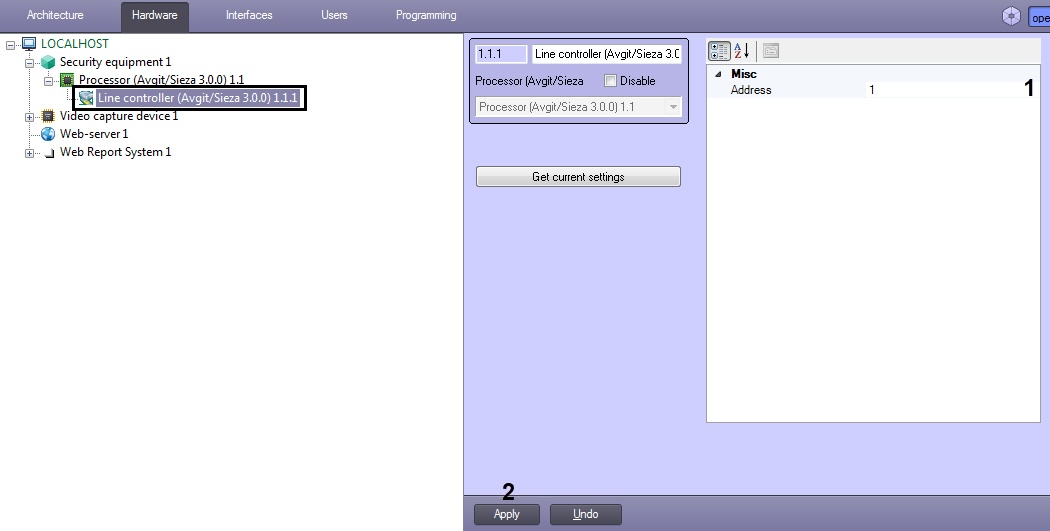

  1. On the basis of the Processor object, create a Line controller object that corresponds to the LCP+ device, and go to its settings panel.
  2. In the Address field (1), enter the device address in the system configuration.
  3. Click the Apply button (2) to save the changes.
