Configuring the PERIDECT+ detection sensors outside the group

To configure the PERIDECT+ detection sensors outside the group, do the following:

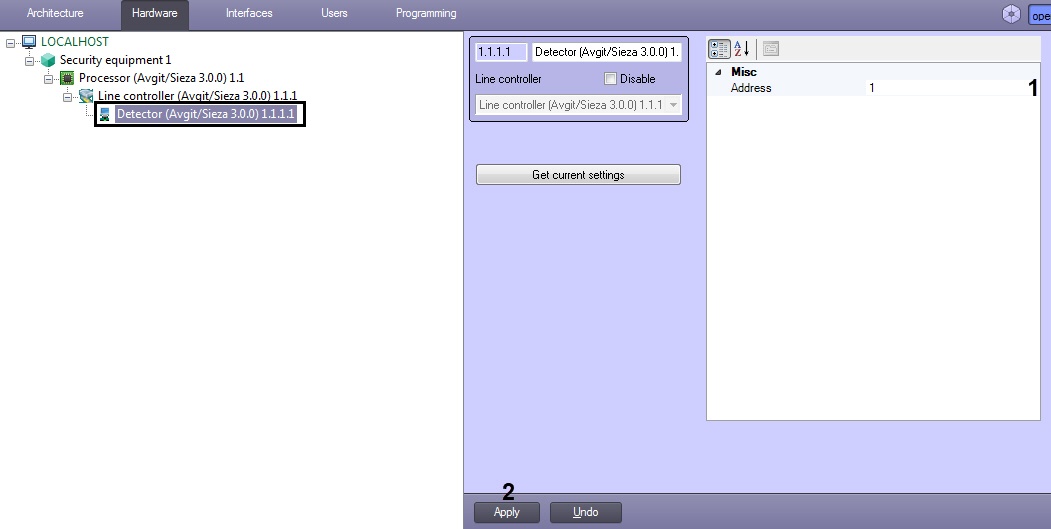

  1. On the basis of the Line controller object, create a Detector object that corresponds to the DSP+ detection sensor, and go to its settings panel.
  2. In the Address field (1) enter the address of the detection sensor in the system configuration.
  3. Click the Apply button (2) to save the changes.

Configuring  the PERIDECT+ detection sensors group

To configure the PERIDECT+ detection sensors group, do the following:

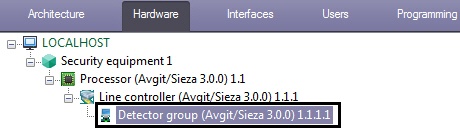

  1. Based on the Line controller object, create a Detector group object.

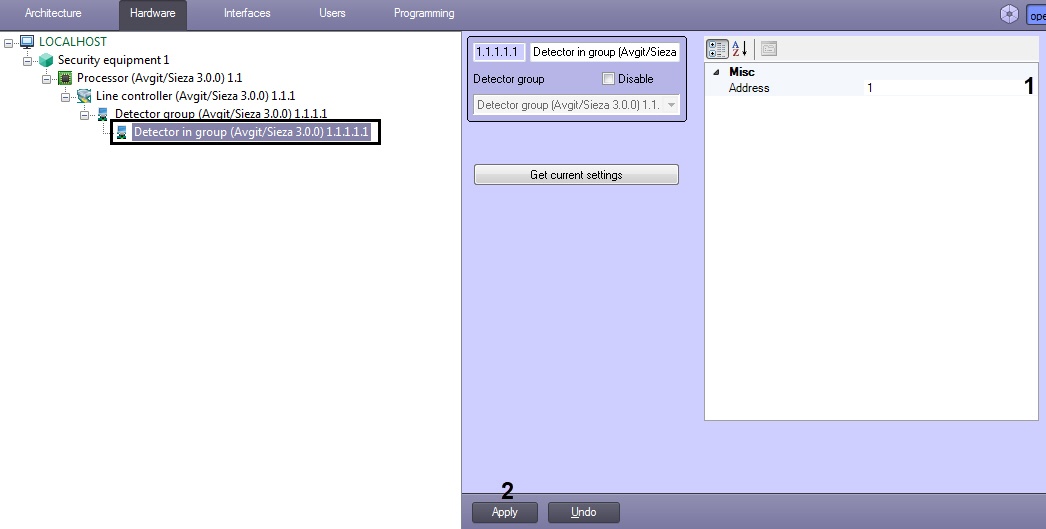

  2. On the basis of the Detector group object, create a Detector in group object that corresponds to the DSP+ detection sensor, and go to its settings panel.
  3. In the Address field (1) enter the address of the detection sensor in the system configuration.
  4. Click the Apply button (2) to save the changes.
