Creating and Configuring Integrated Objects (Modules) in Intellect

To create and configure an integrated object (module) in Intellect:

1. Copy the MDL and RUN files to the Intellect\Modules folder.
2. Start Intellect.

3. Under the Computer object, create the objects added earlier using the software module. For the DEMO module, Under the Computer object, create the DEMO object.

   Note:

   Under the DEMO object, create a child object, DEMO_DEVICE.



   As a result, the setup panels of the created objects become available.

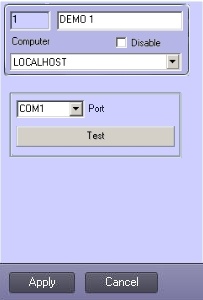

   DEMO object setup panel:

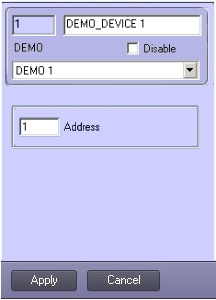

   DEMO_DEVICE object setup panel:



4. Set up the objects.

The integrated objects are now created and set up in Intellect.
