Configuring the Appearance of the Viewing Tile

To configuring the appearance of the viewing tiles:

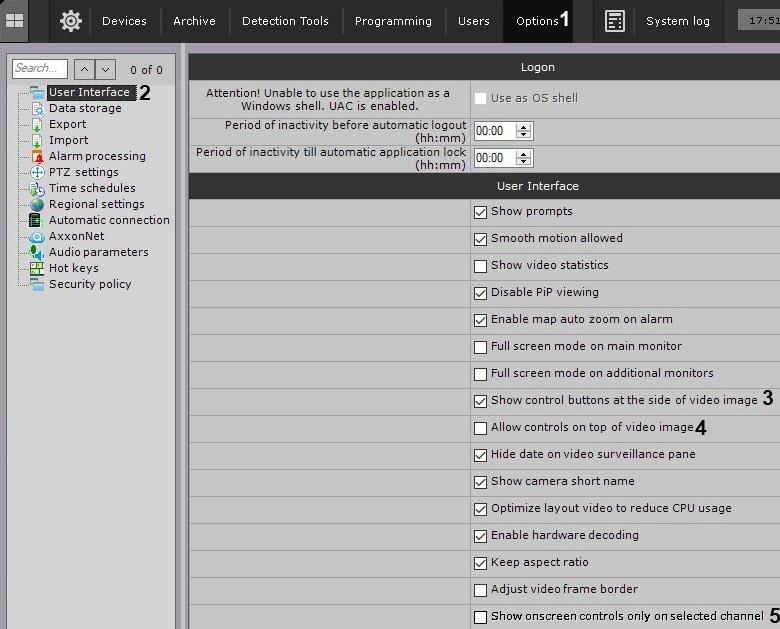

1. Go to Settings → Options → User Interface (1-2).


2. By default, surveillance mode selector buttons are located outside the Camera window. If you prefer having them inside the window, uncheck the Show control buttons at the side of video image box (3).

   Attention!

   In this case, you cannot use digital zoom (in both real time and archive viewing modes) and immersive mode in the Camera window.

3. By default, the Viewing Tile elements (context menus, export buttons, PTZ mode select buttons, etc.) are displayed over the video. To move the controls outside the video area uncheck the Allow controls on top of video image checkbox (4).

4. If you don't need to display window elements in other windows than the active one, select the Show onscreen controls only on selected channel checkbox (5). This parameter is valid only if the Allow controls on top of video image checkbox is selected (4).

5. Click Apply to save the changes.
6. Reopen the Layout or create a new one.
