Viewing the video archive in the AxxonNet iOS mobile client

To proceed to the archive, in the live video viewing mode, click on the date and time  in the lower right corner.

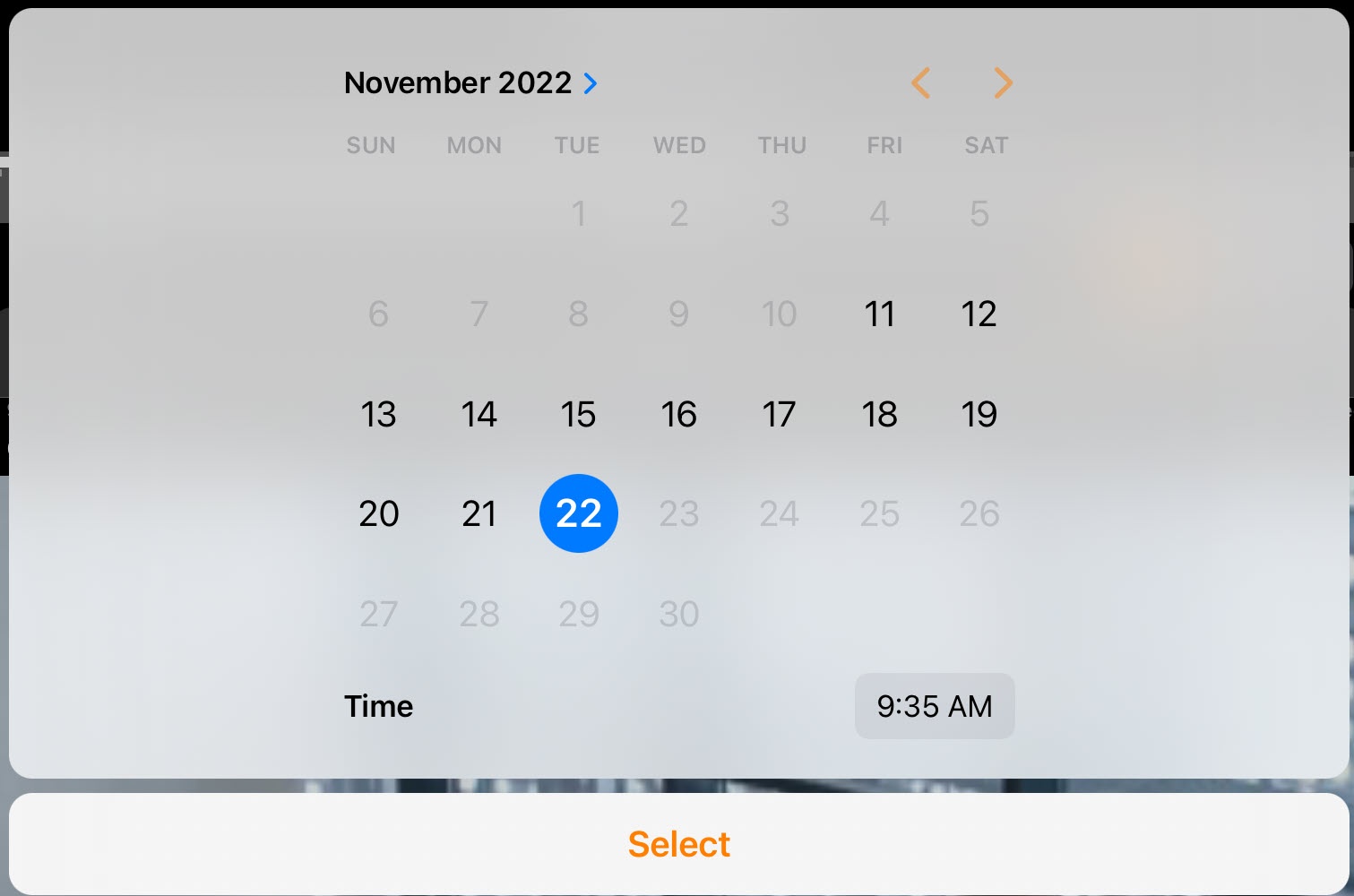

As a result, the panel will appear in the lower part of the screen. On this panel, select the exact point in time. To proceed to the selected point in time, click the Select button.

To switch to the viewing live video mode, click the Live button.

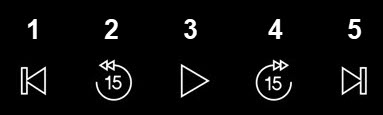

Use the following buttons to control and navigate in the archive:

• 1 - switching to the previous archive fragment. If there are alarms, you will be redirected by these alarm events. Otherwise, you will be redirected to the previous recording.
• 2 - switching 15 seconds back along the archive regarding the current time.
• 3 - play or pause.
• 4 - switching 15 seconds forward along the archive regarding the current time.
• 5 - switching to the the next archive fragment. If there are alarms, you will be redirected by these alarm events. Otherwise, you will be redirected to the next recording.

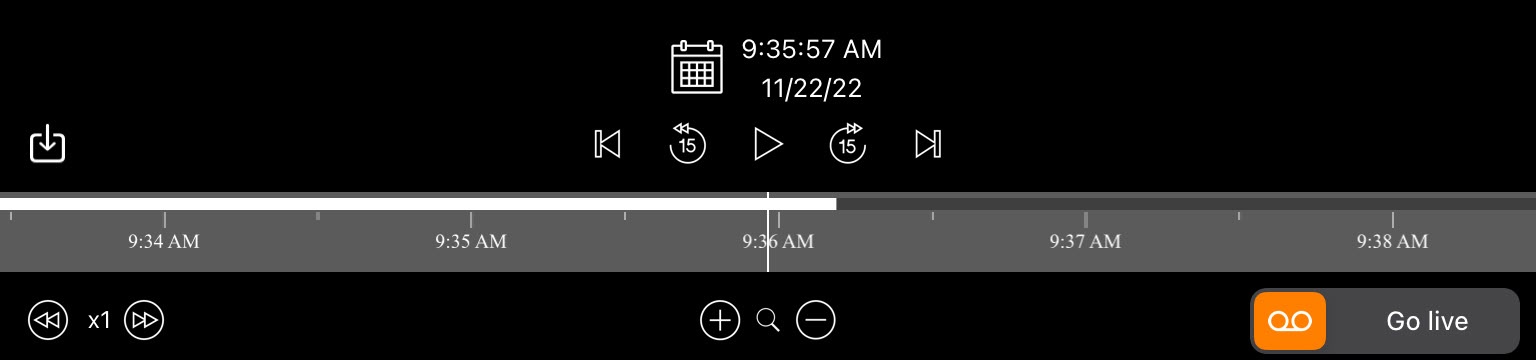

For more precise navigation in the archive, you can use the timeline. Click the  button to display or hide the timeline. As a result, the timeline with the display type specified in the settings will be displayed in the lower part of the screen (see Configuring the timeline operation algorithm in the AxxonNet iOS mobile client). Using the timeline, you can navigate in the archive by swiping left and right on the timeline.

It is possible to speed up, slow down, and also change the direction (forward/reverse) of playback using the  buttons. The current playback speed is displayed between the buttons. During a reverse playback, a - sign is displayed before the speed rate.

You can change the timeline scale by using the  buttons.
