Alarms Panel is used to display alarm events and work with them.

Alarms Panel displays video segments of all alarm events in the system.

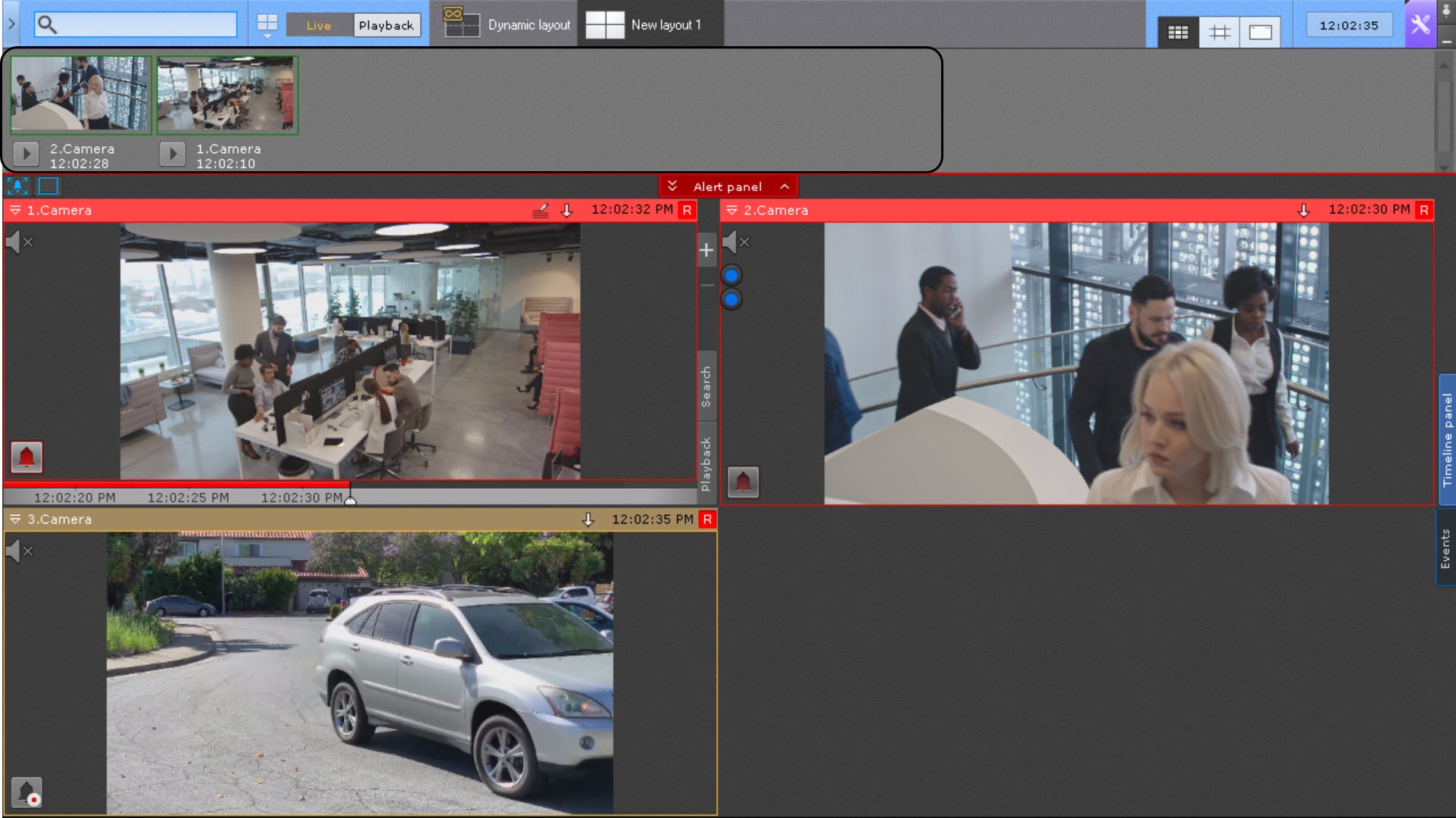

Alarms Panel is located at the top of the screen and is hidden by default. To open the Alarms Panel, click the  button.

The size of the Alarms Panel is adjustable from 10% to 50% of the screen vertically.

To resize the Panel, left-click the Alert panel button and, holding it, move the cursor up or down.

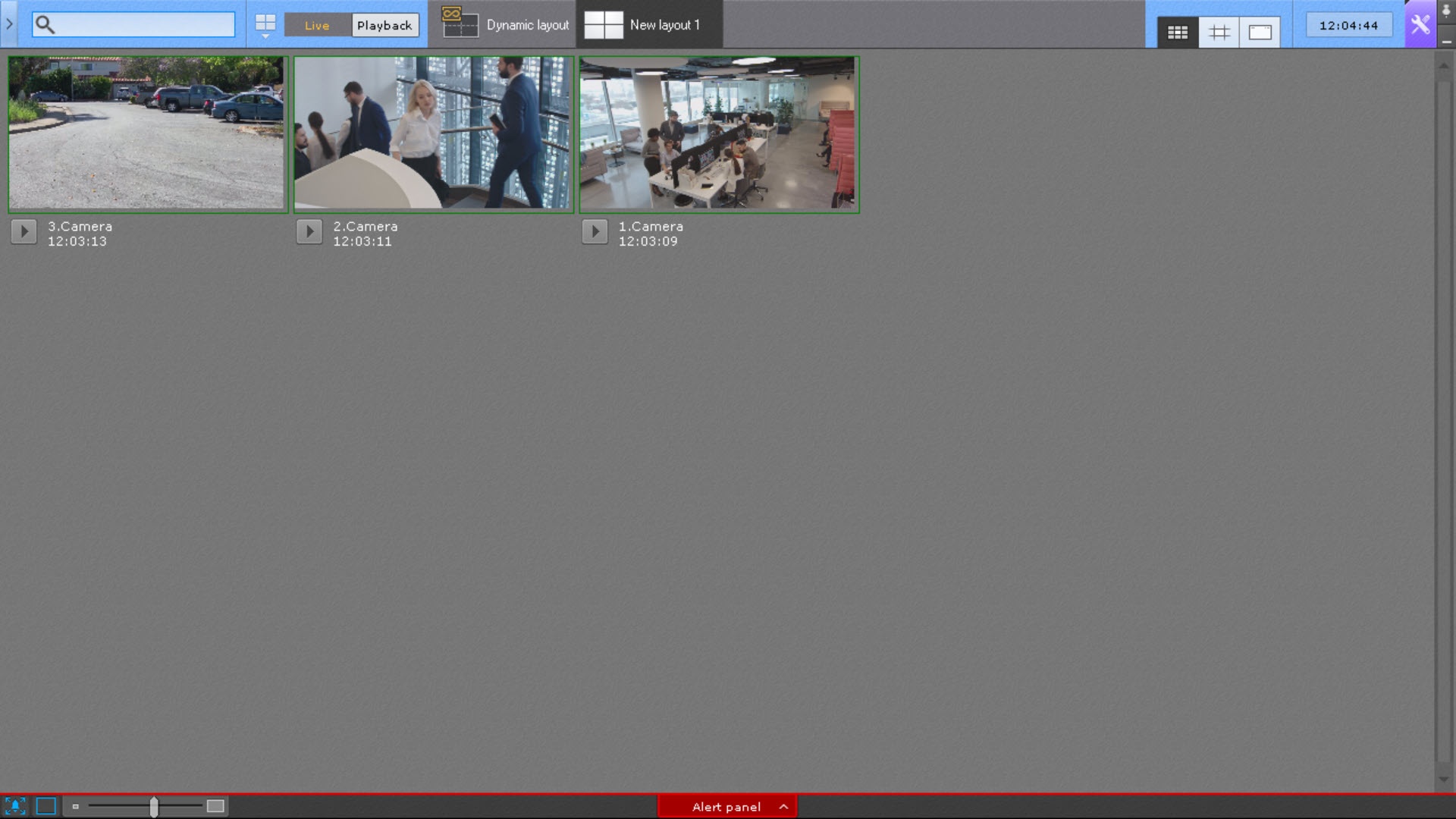

You can expand the Alarms Panel to the full screen. This will hide the layout. To do this, click the  button.

You can resize the video segments displayed on the Alarms Panel.

You can do this, if the size of the Panel exceeds the minimum size (10% of the screen height).

In this case, the slider to change the size of the video segments is displayed in the bottom left corner of the panel.

To hide the Alarms Panel, click the  button.

Note

The Alarms Panel button isn't displayed in the Videowall mode.
