Configuring Viewing tile frame color

In Intellect it is possible to configure the frame color of the camera for various states: alarm, armed, disarmed, no frame or no signal.

Configure the frame color as follows:

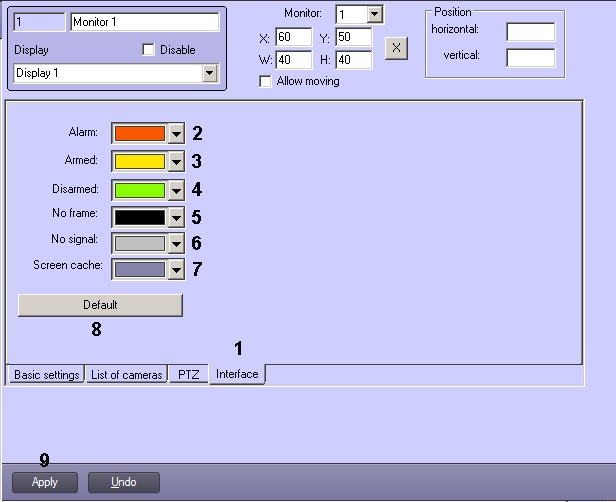

1. Go to the Interface tab on the settings panel of the Monitor object (1).

2. In the Alarm dropdown list select the Viewing tile frame color if there is an alarm on the camera (2). By default it is red.
3. In the Armed dropdown list select the Viewing tile frame color when the camera is armed and there are no alarms (3). By default it is yellow.
4. In the Disarmed dropdown list select the Viewing tile frame color when the camera is disarmed (4). By default it is green.
5. In the No frame dropdown list select the Viewing tile frame color when there is no frame from the camera in the Viewing tile (5). By default it is black.
6. In the No signal dropdown list select the Viewing tile frame color when there is no signal from the camera (6). By default it is grey.
7. In the Screen cache dropdown list select the Viewing tile background color that is displayed when the video from the camera does not overlay the Viewing tile, for instance, when the camera proportions are kept (7).
8. Click the Default button to restore the default settings (8).
9. Click the Apply button to save the changes (9).

The Viewing tile frame color is now configured.
