The Hands up detection tool triggers if a person with one or both hands raised is detected in a specified area.

To configure the Hands up detection tool, do the following:

  1. Configure general settings (see 자세 검출 도구의 공통 매개변수 설정).

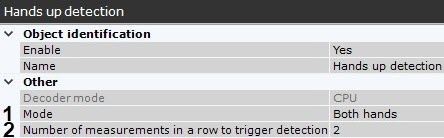

  2. Set the detection tool operation Mode (1):
    1. Both hands: triggers only if the person has both hands raised.
    2. One hand: triggers only if the person has one hand raised.
    3. Only left hand or Only right hand: triggers only if one selected hand is raised.
    4. Left or Right hand: triggers only if the selected hand is raised.
  3. Set the minimum number of frames in which the counter should detect a person with a raised hand/hands in order to trigger (2). The value should be in the range [1; 20].

Note

The Hands up detection tool works in the areas for detection and skip areas specified in the Pose detection tools (see 자세 검출 도구의 공통 매개변수 설정).

Configuring the Hands up detection tool is complete.
