The procedures for setting the minimum and maximum size of a moving object are identical.

The minimum (or maximum) size of a moving object can be set using any of the following methods:

Note

The first method lets you roughly configure the size, and the second method allows you to set the size precisely.

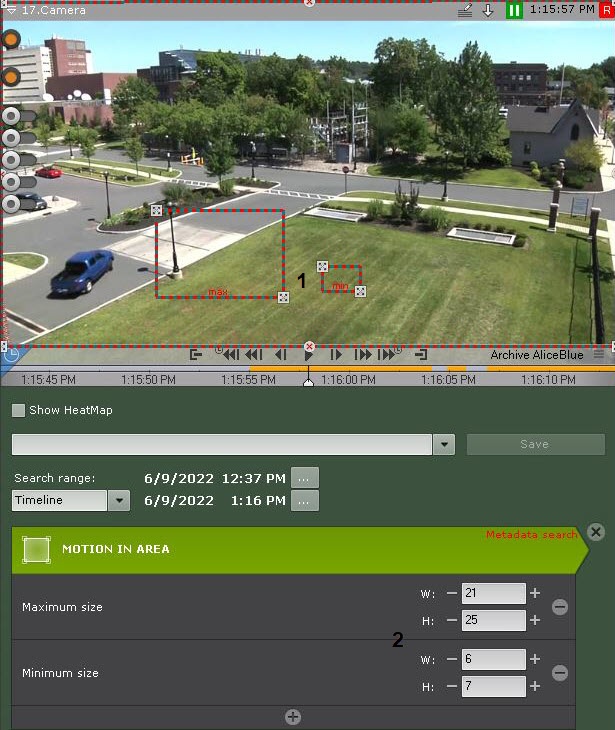

  1. Position the cursor on a visual element node and hold down the left mouse button while moving the mouse (1).
  2. Set the width and height of an object of the minimum (maximum) size using the arrows in the upper and lower margins, respectively. The dimensions of a visual element in the viewing tile can be changed in a similar manner (2).

The minimum (maximum) size of an object is now set.
