Documentation for AxxonSoft Mobile Clients.
Overview

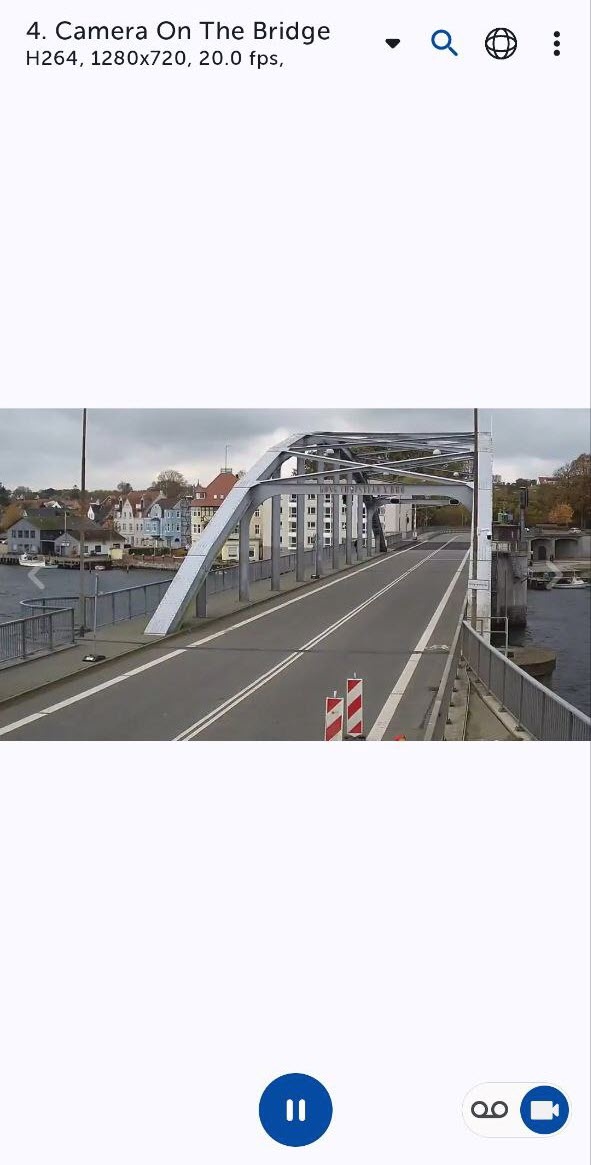

To view the live video, select the necessary camera.
A window with this camera will open. You can switch to the next camera by selecting the
and
arrows. The cameras are scrolled on a loop, taking into account their current sorting and filtering (see Displaying and searching for cameras in the AxxonNet mobile client on Android OS).
Live video playback settings
To select the video resolution, select the name of the camera and in the window that opens, select the required resolution:
Attention!
You can select the resolution only for the mjpeg playback format.
If the camera is multithreaded, in the window that opens, select the required stream:
Live video controls
If the camera has a microphone and a playback format other than mjpeg, the audio from the camera will be played back. To disable audio playback from the camera, select the
button. To enable audio playback, select the
button.
Note
The audio control button may not be displayed if the video has not started playing.
To view the archive, set the switch to the
position (see Viewing archive in the AxxonNet mobile client on Android OS). To return to live video, set the switch to the
position.
To disable audio transmission from the mobile device to the server, select the
button. To enable audio transmission, select the
button.
Note
The ability to transmit audio from a device works only in Axxon PSIM, in which the Microphone object must be configured (see Creating and configuring the Microphone object).
To rotate the camera image, select the
button and in the menu that opens, in the Image rotation parameter, select the
button to rotate the image clockwise. Select the
button to rotate the image counterclockwise. You can rotate the image 90, 180, or 270 degrees.
If you want to open video on another device on which the AxxonNet mobile client is installed, select Copy deep link.
If you want to copy a video link, select Copy video URL.
To hide the controls on the video viewing screen, tap anywhere on the screen. To return the controls, tap again.
To control the image scale, stretch the image with two fingers (see Digital zoom of video image in the AxxonNet mobile client on Android OS).
Horizontal display
On Android mobile devices, you can view video horizontally. To change the display, enable the ability to change the screen orientation in the device settings and rotate the device.
In horizontal display, the controls hide automatically with a short delay and reappear when you tap the screen.
Subtitles display settings
If the camera's playback format is mjpeg, and you configured the Captioner for this camera in Axxon PSIM (see Configuring captions display on a video image), then the subtitles will be displayed over the video image on the screen. The subtitles can be scrolled if there are many of them and they don't fit on the screen.
To hide the subtitles, select the button and in the menu that opens, clear the Subtitles checkbox. To display the subtitles—set the checkbox.
