웹 클라이언트에서 아카이브 검색

There are two ways to search the archive in the Web-Client:

Standard search. To go to the search in the archive, do the following:
1. Select the required camera on the cameras panel or on the layout.
2. Click the button.

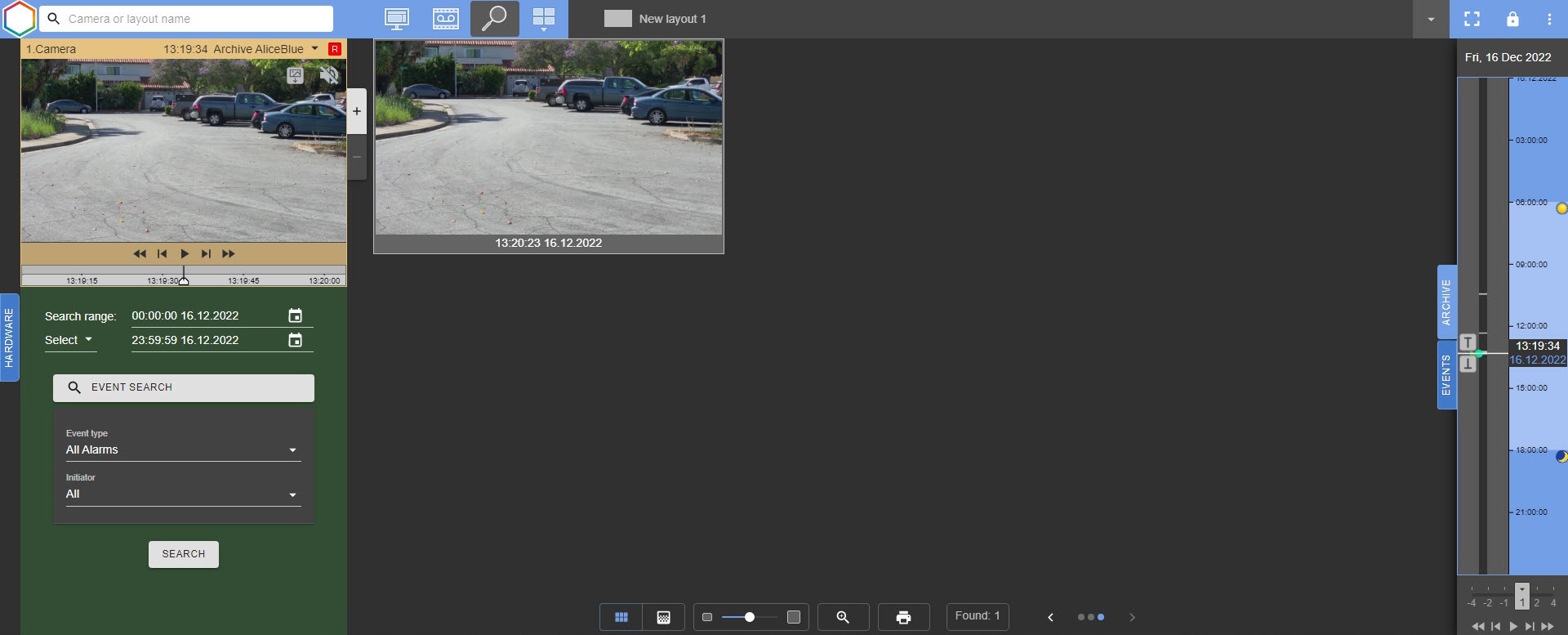

The interface of the archive search in the Web-Client will open. It is similar to the interface of the Client (see 아카이브 검색 모드 인터페이스).

Quick search. To go to the quick search in the archive, do the following
1. Select the required camera on the cameras panel or on the layout.
2. Click the button on the camera fold.
  Note
  The quick search button is displayed on the fold of the cameras, on the basis of which the detection tools with the ability to track objects are created (see 객체 추적).
3. Set the required search area on the grid with the cursor.
4. Click the SEARCH button.

As a result, the interface with the results of a search in the archive by the Motion in the area type of search will open.

The search in the archive is similar to the search in the Client (see 단일 비디오 카메라의 아카이브에서 검색). The search results are the video archive frames that match the specified search criteria.

Attention!

The previews of the search results are downloaded gradually and displayed when you scroll the screen.
In addition to the type of the search, the number of the search results depends on how long the timeline covers (the timeline of the Web-Client is similar to the timeline of the Client, see 타임라인). The more time the timeline covers, the more extensive the search will be.
Depending on the search type and the time period, it may take some time for the search results to load. Search results loading process is indicated by the icon in the middle of the screen.

You can resize the found frames using the slider or the following buttons: (zoom out), (zoom in).

You can change the size of the Surveillance window using the buttons.

Attention!

If you select a device on the cameras panel (see 웹 클라이언트에서 비디오 카메라 검색), the following conditions exist:

If you switch to the camera that was searched previously, the search conditions will be from the previous search.
If you switch to the camera that was not searched previously, the search conditions will be from the camera from which the transition was made.

If you searched several times on the same camera and didn't leave the search tab, you can navigate between the search results:

If you change the camera inside the search, the previous results will be deleted.
