Viewing the data about the last identified vehicle

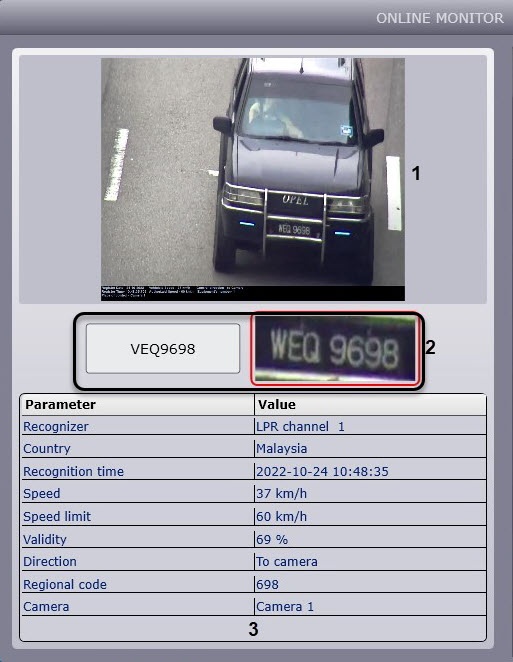

The last identified vehicle data is displayed in the Last event group of the Online monitor window (left area of this window).

Viewing the data about the last identified vehicle is performed in the following way:

1. The vehicle video frame with a caption is displayed in the filed (1).


2. The identified LP number and the LP image is displayed in the field (2).

   Note

   • If the LP number hasn't been recognized, UNDEFINED message will be displayed in the field.
   • If the characters of the recognized number are displayed incorrectly, it is necessary to change the font of the recognized number to the one that will contain all the characters of the corresponding country LP numbers (see Setting up the font of the recognized LP number).
   • The image of the recognized license plate is compressed or stretched to fit the red frame.
3. Depending on the available data, the following information can be displayed in the box (3):
   1. In the Recognizer field, the name of the LP recognizer is displayed (the name of the corresponding LPR channel object).

   2. In the Country field, the country to which belongs the identified LP number is displayed.

      Note

      This field is not displayed when the IV module is used for recognition.

   3. In the Recognition time field, the date and time of receiving the vehicle information is displayed.

   4. In the Speed field, the vehicle speed is displayed.

      Note

      In case the AUTO-Uragan or AR-Auto modules are used for identification, and the Speed traps server module is not connected, zero speed value is displayed.

      Note

      Depending on the Vehicle Tracer settings, the speed is displayed in km/h or mi/h.

   5. In the Speed limit field, the speed limit allowed on this part of the road is displayed.

   6. In the Speeding field, the difference between the captured vehicle speed and the speed limit allowed on this part of the road is displayed.

      Note

      This field is displayed if the speeding event was registered, otherwise this field is absent.

   7. In the Validity field, the identification validity rate is displayed in percent.
   8. In the Direction field, the vehicle's direction is displayed (Undefined, To the camera, From the camera, To the right, To the left).

   9. In the Regional code field, the regional code of the recognized LP is displayed.

      Note

      This field can be hidden (see Setting up the Vehicle Tracer interface window).

   10. In the Camera field, the name of the video camera which captured the vehicle is displayed.

   11. In the SDK data file field, the data file about the triggered engine is displayed.

       Note

       The SDK data file field is displayed only if the AR-Railway module is used.

   12. In the Address field, the camera location address is displayed.
   13. In the Identificator (№) field, the camera ID number is displayed.
   14. In the Certificate (№) field, the certificate number is displayed.

   15. In the Calibration field, the calibration expiration date is displayed.

   16. In the Vendor and Model and Color field, the vendor and model and color of the recognized vehicle are displayed.

       Note

       The Vendor and Model and Color fields are displayed only if the RR vendor and model recognizer is used.

   17. In the Type field, the type of the recognized vehicle is displayed.

       Note

       This field is displayed only if the Vehicle type recognition module and/or the RR vendor and model recognizer are used.

   18. In the Dangerous goods class and Dangerous goods composition fields, the class and the contents of the dangerous cargo are displayed correspondingly.

       Note

       The Dangerous goods class and Dangerous goods composition fields are displayed only if the AR-Auto module and the Hazard Identification Number Recognition Engine (ADR) are used.

   19. In the GPS coordinates field, the coordinates of the camera installation are displayed.

Viewing the data about the last identified vehicle is complete.
