The ONVIF-Server object is used to transmit a video signal from Axxon PSIM via the ONVIF protocol.

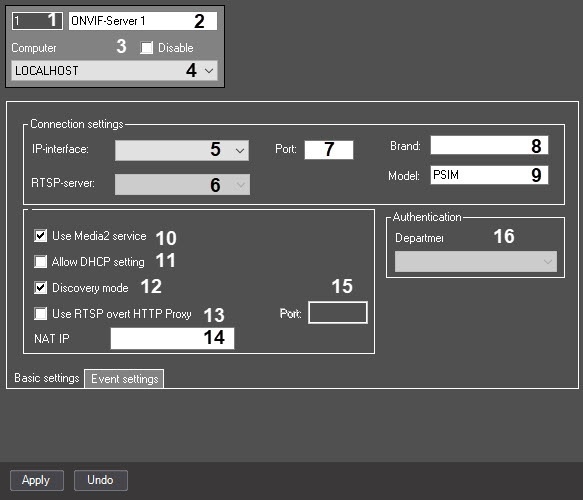

The settings panel of the ONVIF-Server object is shown in the figure.
The Basic settings tab
The table describes the setting parameters of the ONVIF-Server object.
| № | Parameter | Method for setting the parameter value | Parameter description | Representation | Default value | Value range |
| 1 | Identification number* | Automatically | Displays the identification number of the ONVIF-Server object in the video surveillance system with distributed architecture | Numbers, letters, periods, hyphen, dash, and underscore | NA | Depends on the number of the ONVIF-Server objects in the video surveillance system with distributed architecture |
| 2 | Name* | Enter the value in the field | Sets the name of the ONVIF-Server object in the video surveillance system with distributed architecture | Latin, Cyrillic, and service characters | ONVIF-Server | A line containing a sequence of any characters (letters, digits, service characters except > and < characters), case-insensitive. Number of characters—from 1 to 60 |
| 3 | Disable | Set the checkbox | Disables the ONVIF-Server object in the video surveillance system with distributed architecture | Boolean type | Clear | Set—the ONVIF-Server object is disabled and not in use. Clear—the ONVIF-Server object is enabled and in use. |
| 4 | Computer | Select the value from the list | Sets the Computer parent object in the system with distributed architecture to which the given ONVIF-Server object belongs | Names of the Computer objects registered in the system | Name of the Computer parent object | Depends on the number of the computers in the video surveillance system with distributed architecture |
| The Basic settings tab | ||||||
| 5 | Port | Enter the value in the field | Sets the port number used to connect to the server | Integer numbers | NA | From 1 to 65535 |
| 6 | IP-interface | Select the value from the list | Sets the network interface (network adapter) used to connect to the server | List of available network interfaces | NA | The list of values depends on the network adapters available in the system |
| 7 | RTSP-server | Select the value from the list | Sets the RTSP-server object, the settings of which are applied by the ONVIF-Server object while transmitting the video signal | Names of the RTSP-server objects registered in the system | NA | Depends on the number of the RTSP-server objects created in Axxon PSIM |
| 8 | Use Media2 service | Set the checkbox | Enables the ONVIF 2.X standard instead of ONVIF 1.X | Boolean type | Clear | Set—the ONVIF 2.X standard is used. The video is transmitted in the H264, H265, MJPEG, or MPEG4 formats Clear—the ONVIF 1.X standard is used. The video is transmitted in the MPEG, MJPEG, or H264 formats |
| 9 | Allow DHCP setting | Set the checkbox | Enables the DHCP support | Boolean type | Clear | Set—DHCP is used Clear—DHCP isn't used |
| 10 | Discovery mode | Set the checkbox | Enables the WS-Discovery mode | Boolean type | Set | Set—the WS-Discovery mode is enabled Clear—the WS-Discovery mode is disabled |
| 11 | Brand | Enter the value in the field | Sets the name of the brand that is displayed in the third-party clients that support the video transmission via the ONVIF protocol | Latin, Cyrillic, and service characters | AxxonSoft | A line containing a sequence of any characters (letters, digits, and service characters) |
| 12 | Model | Enter the value in the field | Sets the name of the model that is displayed in the third-party clients that support the video transmission via the ONVIF protocol | Latin, Cyrillic, and service characters | PSIM | A line containing a sequence of any characters (letters, digits, and service characters) |
| 13 | Department | Select the value from the list | Sets the department in which the users are created when they are added via the ONVIF-Server interface | Names of the Department objects registered in the system | NA | Depends on the number of the departments registered in Axxon PSIM |
| 14 | Use RTSP over HTTP Proxy | Set the checkbox | Redirects all RTSP-Server and ONVIF-Server requests to the specified port for the operation behind NAT | Boolean type | Clear | Set—the RTSP-Server and ONVIF-Server requests are redirected to the specified port (item 15) Clear—the RTSP-Server and ONVIF-Server requests are transmitted to the port specified in the Connection settings group (see item 5 above) |
| 15 | Port | Enter the value in the field | Sets the port number for the RTSP-Server and ONVIF-Server requests redirection for the operation behind NAT | Integer numbers | NA | From 1 to 65535 |
| 16 | NAT IP address | Enter the value in the field | Sets the IP address that the ONVIF Server will use in responses to Clients if the Clients are behind NAT | IP address | NA | Depends on the network settings behind NAT |
*Name of the element isn't displayed in the settings panel of the given object.

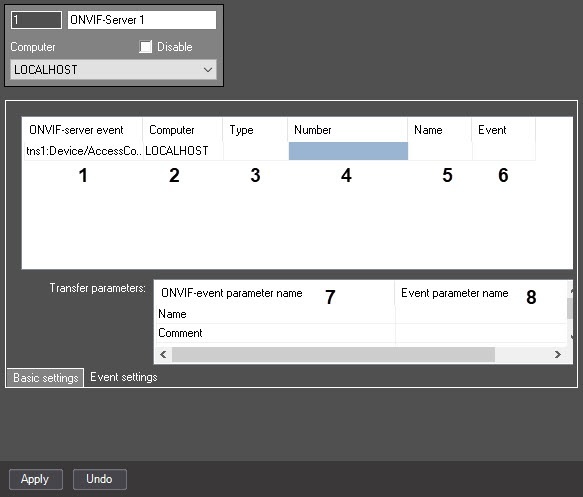

The Event settings tab
| № | Parameter | Method for setting the parameter value | Parameter description | Representation | Default value | Value range |
| The ONVIF-server event group | ||||||
| 17 | ONVIF-server event | Select the value from the list | Sets the ONVIF-server event according to the ONVIF specification | List of available events | NA | According to the ONVIF specification |
| 18 | Computer | Select the value from the list | Sets the Computer object on the basis of which the object is created, that is, the event source in Axxon PSIM | Names of the Computer objects registered in the system | NA | Depends on the number of the computers in the video surveillance system with distributed architecture |
| 19 | Type | Select the value from the list | Sets the event type, which is the event source in Axxon PSIM | Names of the object types registered in the system | NA | Depends on the number of the created objects in the video surveillance system with distributed architecture |
| 20 | Number | Select the value from the list | Sets the object number, which is the event source in Axxon PSIM | Sequence of numbers | NA | Depends on the number of the created objects in the video surveillance system with distributed architecture |
| 21 | Name | Automatically | Sets the object name, which is the event source in Axxon PSIM | Names of the object of the selected type registered in the system | NA | Depends on the number of the created objects in the video surveillance system with distributed architecture |
| 22 | Event | Select the value from the list | Sets the event name in Axxon PSIM | Event names received from the objects of the selected type | NA | Depends on the object type |
| The Transfer parameters group | ||||||
| 23 | ONVIF-event parameter name | Automatically | Sets the ONVIF-event parameter name according to the specification | Parameter names of the selected ONVIF-event | NA | According to the ONVIF specification |
| 24 | Event parameter name | Enter the value in the field | Sets the event parameter name in Axxon PSIM | Latin, Cyrillic, and service characters | NA | A line containing a sequence of any characters (letters, digits, and service characters) |
*Name of the element isn't displayed in the settings panel of the given object.
