To configure the system to switch to the layout with the minimal number of cells for displaying the specified video camera when a detection unit is triggered, you must perform the following steps:

  1. Create the automatic rule Open Layout (see Adding an automatic rule).

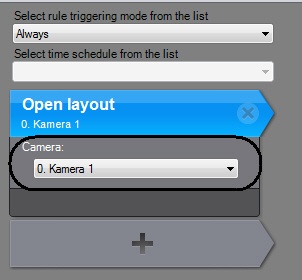

  2. Select the video camera whose layout you need to switch to from the appropriate list.
  3. To save changes, click the Apply button.

The following procedure will be used for displaying video cameras:

  1. The system searches for layouts that contain the specified video camera and are accessible to the user.
  2. The system chooses the layout with the minimum number of cells to display the selected video camera.
  3. If the required layout does not yet exist, the system creates a new layout with a single video camera.
  4. The system switches to the selected layout.
  5. The video camera becomes active in the selected layout, and the viewing tile is expanded by one level.
