Depending on the certain configuration, the Alarm window can be displayed automatically in the following cases:

  1. If the recognized license plate number coincides with the number stored in the external online monitoring database. As a result, the  sign will be displayed at the top of the alarm window.
  2. If the alarm event was triggered manually. As a result, the  sign will be displayed at the top of the alarm window.

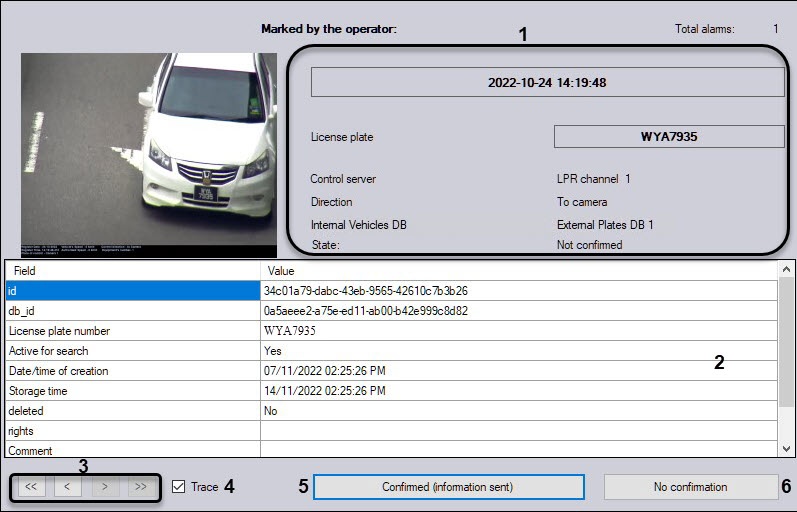

The following data is displayed in the Alarm window:

  1. Event information (1):
    • Date and time when the alarm event was recorded.
    • License plate number.
    • Recognition server name that recorded the event.
    • Vehicle direction of movement relative to the camera.

    • Name of the external database.

      Note

      The field with the name of the external database is hidden if the the alarm event was triggered manually.

    • Current state of the alarm event.

      Note

      There can be the following states of the alarm event:

      • Not confirmed - a new event that has not yet been confirmed.
      • Processing... - an alarm event is confirmed, but the information has not yet been recorded to the database.
      • Confirmed - the alarm is confirmed and recorded to the database (you may not notice this state since the event is deleted from the Alarm window after a successful confirmation).
      • Error - the confirmation is not recorded to the database due to the heavy load on the Server. It is necessary to confirm the event again.

  2. The description from the stolen vehicles database (2): ID, LP number, storage time, search status, date and time of creation, comment, full name of the operator who created the report.

    Note

    The table with the description from the stolen vehicles database is hidden if the the alarm event was triggered manually.

Use buttons to scroll the alarm events (3).

To confirm the active alarm status, click the Confirmed (information sent) button (5). As a result the alarm will be marked as received in the On-line monitor window, and deleted from the Alarm window. If the Trace checkbox is set (4), the confirmed alarm will be deleted from all Alarm windows in the distributed system.

To close the window of stolen vehicle report click the No confirmation button (6). If you click this button, the alarm status will not be changed in the On-line monitor (alarm will not be processed).
