It is possible to record a video signal received from the license plate recognition camera during a specified time interval. If you enable this function, the recording starts automatically when the LPR channel recognizes a license plate.

Note

In case of heavy traffic, when subsequent license plates are registered in a time period less than that specified, the video signal is recorded continuously.

To enable the function of automatic video recording, do the following:

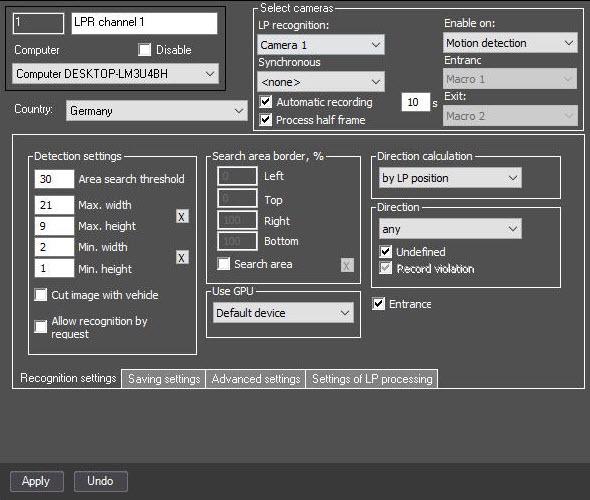

  1. Go to the settings panel of the LPR channel object, corresponding to the activated module (see Activating the software module used for identifying license plates).

  2. Set the Automatic recording checkbox to enable the automatic recording of the video upon recognizing a license plate.

  3. In the field next to the checkbox, specify for how many seconds the video must be recorded after license plate recognition.

    Note

    If you enter 0 seconds in this field, continuous recording starts when a license plate is recognized.

  4. Click the Apply button to save the settings.

Configuration of automatic video recording when a license plate is recognized is complete.
