Set up the frame caption

If the frame recording to the license plate database is activated, a frame caption is automatically assigned to every frame with a license plate.

You can change the parameters of the frame caption.

To set up the parameters of the frame caption, do the following:

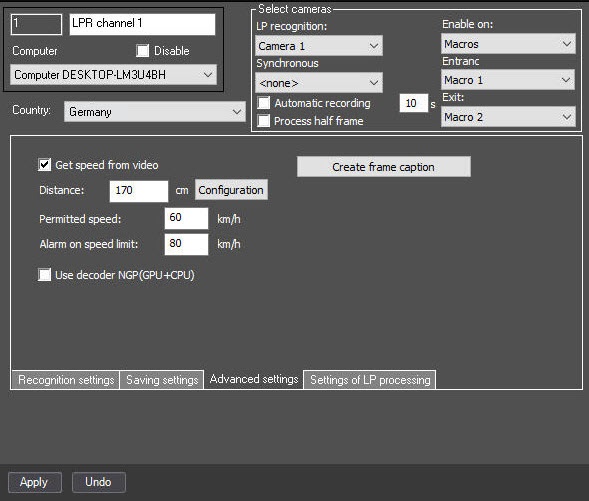

1. Go to the Advanced settings tab on the settings panel of the LPR channel object, corresponding to the activated module (see Activating the software module used for identifying license plates).


2. Click the Create frame caption button. A window with the same name opens.

3. Add one or several parameters of camera installation and speed detector used together with the LPR channel to a frame caption. Set the Enabled checkboxes next to the necessary parameters in the SD installation parameters group and then enter in the field or select the values of corresponding parameters from the list.


   №	Parameter	Parameter description
   1	SD installation height	Speed detector installation height in meters
   2	Shooting angle	The angle formed by the optical axis of the lens of license plate recognition camera and the vertical support of the camera, in degrees
   3	Setting angle	Projection onto the horizontal plane of the angle formed by the normal of the speed detector and the trajectory of vehicle direction, in degrees
   4	Installation type	Installation type of speed detector
   5	Lane number	The number of lane controlled by speed detector
   6	GPS coordinates	GPS coordinates of speed detector. The maximum number of characters is 21

4. Add one or several speed detector parameters to the frame caption. Set the Enabled checkboxes next to the necessary parameters in the Information about SD group and then enter in the field or select the values of corresponding parameters from the list.


   №	Parameter	Parameter description
   1	SD serial number	Serial number of speed detector
   2	SD name	Name of speed detector
   3	Manufacturer ID	ID of speed detector manufacturer
   4	Inspection expiring	Date in the YYYY.MM.DD format until which the metrological check of speed detector is valid
   5	Inspection certificate number	Number of inspection certificate of the last metrological check of speed detector
   6	Inspection performed by	Authority who performed the last metrological check of speed detector
   7	Expiry date of certificate of measuring tools type approval	Date in the YYYY.MM.DD format until which the certificate of measuring tools type approval is valid
   8	ID of certificate of measuring tools type approval	ID of certificate of measuring tools type approval
   9	Issue date of certificate of measuring tools type approval	Date in the YYYY.MM.DD format when the certificate of measuring tools type approval was issued
   10	Inspection date	Date in the YYYY.MM.DD format of the last metrological check of speed detector
   11	Receiver code	Receiver code of the speed detector
   12	Sender code	Sender code of the speed detector

5. Add one or several speed detector parameters to the frame caption. Set the Enabled checkboxes next to the necessary parameters in the Info about SD installation site and then enter in the field or select the values of the corresponding parameters from the list.


   №	Parameter	Parameter description
   1	System code name	The code name for the hardware and software system for photo and video recording that includes speed detector
   2	Unique complex ID	By default, the identifier of the LPR channel object in Auto PSIM is displayed. If you change the default value, the string indicated in the field is displayed
   3	Complex name	Complex name
   4	Complex installation site (short)	Short description of complex installation site
   5	Constituents of Russian Federation	The constituent member of the Russian Federation where the speed detector is installed
   6	SD number in complex	Speed detector number in the complex (channel number)
   7	SD installation site in complex	Description of speed detector site in the complex
   8	Installation region	Region where speed detector is installed
   9	Settlement	Settlement where speed detector is installed
   10	Street	Street where speed detector is installed
   11	House	House near which speed detector is installed
   12	Vehicle direction at complex installation site	Vehicle's direction at the complex site
   13	OKATO-code	Speed detector site code in All-Russian classifier of administrative territorial division
   14	Additional info	Additional information about speed detector
   15	Controlled direction	Vehicle's direction in respect of speed detector that controls it
   16	Critical speed threshold	Vehicle's speed that is considered to be critical (for example, alarm is being generated in the process)
   17	Speed limit at installation site	Allowed vehicle speed at the roadside that is controlled by the speed detector

6. Click the OK button to save the changes and close the window.

   Note

   Click button to close the window without saving the changes.



7. Click the Apply button on the settings panel of the LPR channel object.

Setting up the digital frame caption is completed.
