Configuring the SALTO integration module

To configure the SALTO integration module, do the following:

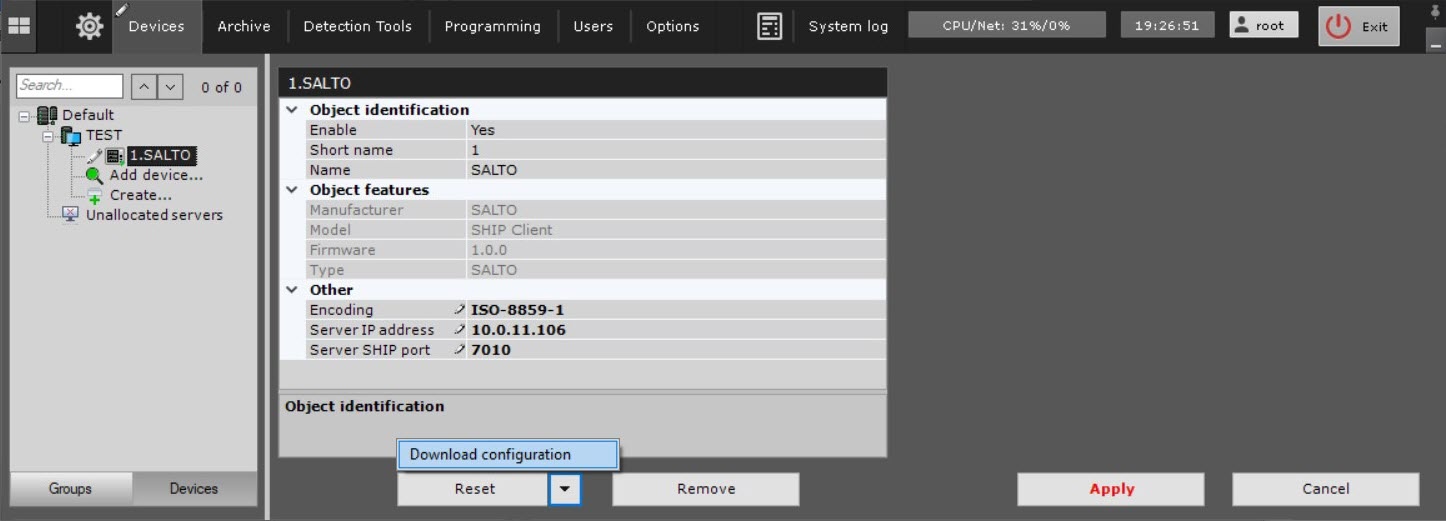

1. Go to the settings panel of the SALTO object.


2. In the Encoding field from the drop-down list, select the encoding for the correct display of characters:
   1. UTF-8.
   2. ISO-8859-1 (by default).
3. In the Server IP address field, specify the IP address of the computer on which the SALTO ProAccess Space Service software is installed.
4. In the Server SHIP port field, specify the port number of the SHIP client that is configured in the SALTO ProAccess Space Service software. You can see the port number in the settings of the Web client ProAccess Space Service.

5. Click the Apply button to save the changes.
6. Click the  button and select Download configuration from the drop-down list to automatically download the configuration and build the hardware tree.
7. Click the Apply button.

Configuring the SALTO integration module is complete. As a result, a hardware tree will be built:
