To configure the Paxton integration module, do the following:

  1. Go to the settings panel of the Paxton object.
  2. In the Address field, enter the address of the connection to the Net2 software.
  3. In the Login field, enter the login of the Net2 software user.
  4. In the Password field, enter the password of the Net2 software user.
  5. In the Show Server Events field, select the Yes value if you want to receive additional events from the Net2 software. The default value is No.
  6. Click the Apply button to save the changes.
  7. Click the button and select Download configuration from device to automatically download the configuration and build the hardware tree.
  8. Click the Apply button.

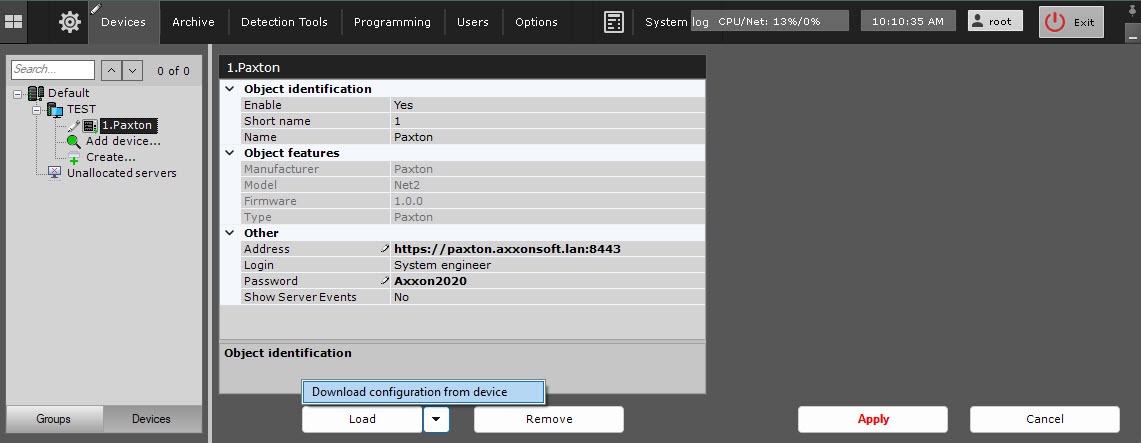

Configuration of the Paxton integration module is complete. As a result, a hardware tree is built:
