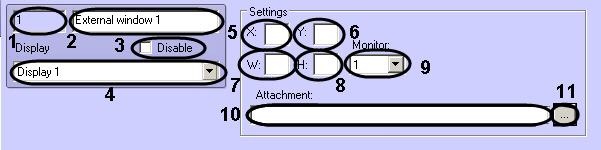

The Settings panel of the External window object

1

Identification number*

Automatically

Displays the identification number of the External window object.

Sequence of numbers

-

From 1 and above.

Depends on the number of External window objects.

2

Name*

Enter the value in the field

Defines the name of the External window object.

Latin, Cyrillic and service characters

External window

A line containing a sequence of any symbols (letters, digits, service characters apart from > and < symbols), not case-sensitive.

Number of symbols – from 1 to 60.

3

Disable

Is identified by the check mark

Defines the status of the External window object (enabled or disabled).

Boolean type

Not available

Yes – the External window object is  disabled and is not in use.

No – the External window object is enabled and is in use.

4

Screen

Is selected from the list

Defines the parent Display object, to which the given External window object refers.

Names of the Display objects register-ed in the system

Name of the parent Display object.

Depends on the number of Display objects available.

Settings Group

5

X

Enter the value in the field.

Defines the coordinate in the X horizontal axis for the upper left corner of the window of the External window interface object on the screen.

% of the screen width

Not defined

From 0 to M*100, where M is the number of monitors installed.

6

Y

Enter the value in the field.

Defines the coordinate in the Y vertical axis for the upper left corner of the window of the External window interface object on the screen.

% of the screen height

Not defined

From 0 to M*100, where M is the number of monitors installed.

7

W

Enter the value in the field.

Defines the window width of the External window interface object.

% of the screen width

Not defined

From 0 to M*100, where M is the number of monitors installed.

8

H

Enter the value in the field.

Defines the window height of the External window interface object.

% of the screen width

Not defined

From 0 to M*100, where M is the number of monitors installed.

9

Monitor

Select value from the list

Specifies the number of monitor which is in use for displaying window of external application

Number of Monitors

1

1-9

10

Application

Enter the value in the field

Defines the path to the application, which should be launched.

Note. All windows of application will be opened simultaneously if the application contains several windows.

Latin, Cyrillic and service characters

Is not defined

A line containing a sequence of symbols (Latin and service characters, digits) not case-sensitive. Number of symbols – from 1 to 250.

11

Button  «…»

Click the button

Displays standard dialog of open the file of Windows OS to specify path to application which is required to run.

-

-

-
