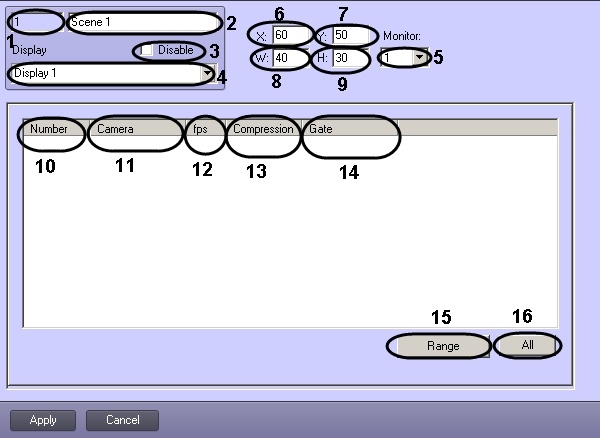

The Settings panel of the Scene object

№

Parameter

Method for entering the parameter

Parameter description

Symbols used

Default value

Value range

1

Identification number*

Automatically

Displays the identification number of the Scene object.

Sequence of numbers

-

From 1 and above.

Depends on the number of Scene object.

2

Name*

Enter the value in the field

Defines the name of the Scene object.

Latin, Cyrillic and service characters

Scene

A line containing a sequence of any symbols (letters, digits, service characters apart from > and < symbols), not case-sensitive.

Number of symbols – from 1 to 60.

3

Disable

Is identified by the check mark

Defines the status of the Scene object (enabled or disabled).

Boolean type

Not available

Yes – the Scene object is disabled and is not in use.

No – the Scene object is enabled and is in use.

4

Screen

Is selected from the list

Defines the parent Display object, to which the given Scene object refers.

Names of the Display  objects register-ed in the system

Name of the parent Display  object.

Depends on the number of Display  objects available.

5

Monitor

Is selected from the list

Is designed for video surveilance monitor selection on which the panoramic view window has to be displayed

Sequence of numbers

1

1..9

6

X

Enter the value in the field.

Defines the coordinate in the X horizontal axis for the upper left corner of the window of the Scene interface object on the screen.

% of the screen width.

Not defined

From 0 to 100

7

Y

Enter the value in the field.

Defines the coordinate in the Y vertical axis for the upper left corner of the window of the Scene  interface object on the screen.

% of the screen height.

Not defined

From 0 to 100

8

W

Enter the value in the field.

Defines the window width of the Scene  interface object.

% of the screen width.

Not defined

From 0 to 100

9

H

Enter the value in the field.

Defines the window height of the Scene  interface object.

% of the screen width.

Not defined

From 0 to 100

10

Number

Is selected from the list

Set camera’s number to be displayed

Latin, Cyrillic and service characters.

Is not defined

Depends on number of cameras registered in the system

11

Camera

Is selected from the list

Set camera’s name to be displayed

Names of cameras registered in the system

-

Depends on number of cameras registered in the system

12

fps

Is selected from the list

Set fps to be transferred to the Scene object

Sequence of numbers

-

1, 2, 3, 4, 6, 8, 12, 16, 20, 25, 30

13

Compression

Is selected from the list

Set the video signal compression level to be transferred to the Scene object. With set value there is additional use of Server’s resources

Sequence of numbers

-

In order of greater compression 0, 1, 2, 3, 4, 5

0 – no compression

5 – maximum compression

14

Gate

Is selected from the list

Set the Gate object from which the video archive and footage from the selected camera is to be received to the Scene object.

Names of the Gate objects registered in the system

-

Depends on the number of Gate objects registered in the system

15

Range

Click the button

Access to complex selection and editing the cameras parameters to be displayed on Scene object

-

-

-

16

All

Click the button

Selection of all cameras registered in the system to be displayed on the Scene object

-

-

-
