The Settings panel of the Region object

The Region object is designed to create zones, which break down secured areas into structural elements. The Region objects allow:

group hardware based on the attributes of a certain region;
execute certain operations concurrently with all objects of the same type belonging to the same region.

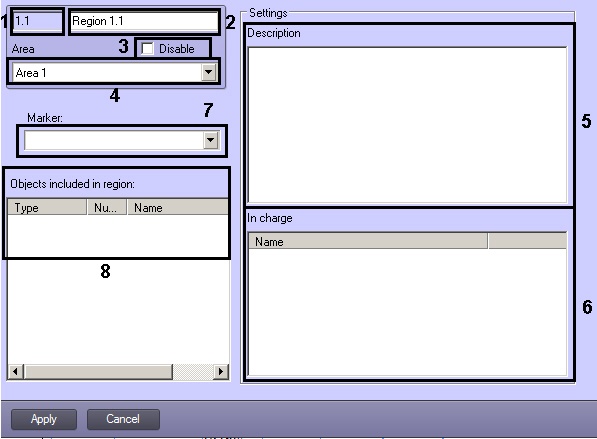

The settings panel of the Region object is shown in the figure.

The table describes the parameters of the settings corresponding to the elements of the settings panel of the Region object.

№	Parameter	Method for entering the parameter	Parameter description	Sym-bols used	Default value	Value range
1	Identification number*	Automatically	Shows the identification number of the Region object in the digital video surveillance system.	Sequ-ence of numb-ers	-	Depends on the number of Region objects in the digital distributed video surveillance system
2	Name*	Enter the value in the field	Assigns the name to the Region object.	Latin, Cyrill-ic and servi-ce chara-cters	Region	A line containing a sequence of any symbols (letters, digits, service characters apart from > and < symbols), case-insensitive Number of symbols – from 1 to 60.
3	Disable	Is identified by the check mark	Shows the status (enabled or disabled) of the Region object in the digital distributed video surveillance system.	Bool-ean type	Not available	Yes – the Region object is disabled and is not in use. No – the Region object is enabled and is in use.
4	Area	Is selected from the list	Assigns the parent Area object, to which the given Region object refers.	Name of the Area object-s regist-ered in the system.	Name of the parent Area object	Depends on the number of Area objects in the digital system.
Settings Group
5	Description	Enter the value in the field	Defines the description of the given region.	Latin, Cyrill-ic and servi-ce chara-cters	Not defined	A line containing a sequence of any symbols (letters, digits, service characters), case-insensitive Number of symbols – from 1 to 60.
6	Description	Is selected from the list	Defines the users registered by the system, responsible for the given region.	Latin, Cyrill-ic and servi-ce chara-cters	Not defined	Depends on the number of users registered by the system.
7	Marker	Select from the list	Specifies the set of signs which will be in use while displaying region on the interactive map	Available set of signs specified by means of the ddi.exe utility	Not specified	Depends on the number of available sets of signs
8	Objects included into region	Automatically	Displays the list of objects related to this region	Type, number and name of objects included into region	Not specified	Depends on the number of the objects related to this region

*The name of the element is not displayed in the settings panel of the given object
