This stage includes the following:

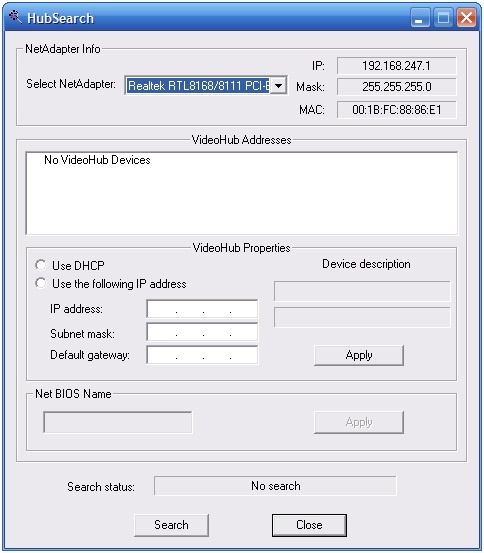

  1. Run the HubSearch utility bundled with INTELLECT™ software kit. To run the utility in the Windows main menu click Start => All Programs => Intellect => Tools => HubSearch.
  2. Select the network adapter via which your computer is connected to the LAN to which LS (LH) is connected (the Select NetAdapter dropdown list) and click the Search button.

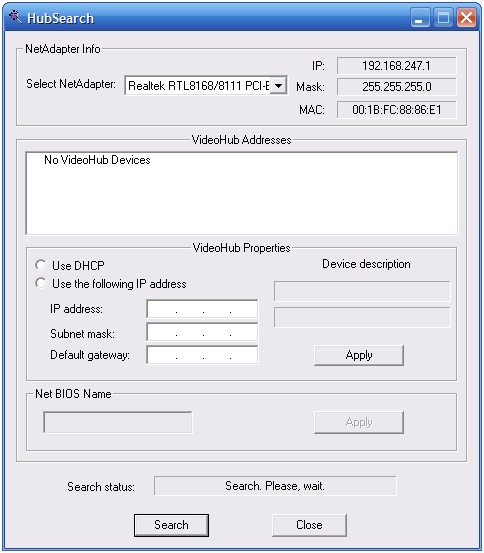

  3. The system will search for all LSs and LHs connected to this local network. The Search status field will display Search. Please, wait during the search process.

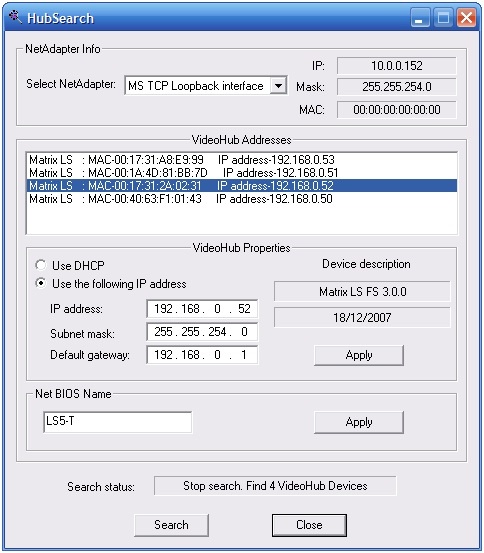

  4. When the search is completed, the Search status field will display Stop search. Find… . The found devices will be added to the VideoHub Addresses list. Select the required LS (LH) in the list. The VideoHub Properties field will display the information on the selected device.
  5. Some of the parameters of the selected device can be edited (IP address, subnet mask, default gateway and NET BIOS name). To edit the NETBIOS name, change the value in the Net BIOS Name field and click the Apply button next to this field. To specify the IP address, subnet mask and default gateway manually, set the Use the Following IP address checkbox checked, specify the values in the fields and click the Apply next to these fields. The default values are set by the Dynamic Host Configuration Protocol service when the DHCP checkbox is set.

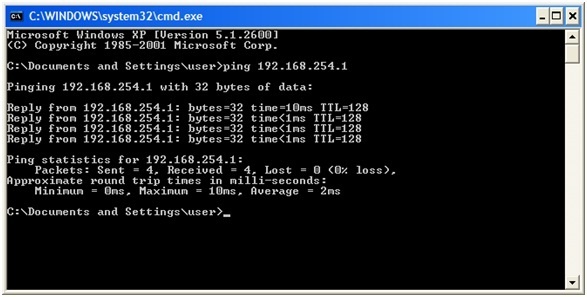

  6. Test LS (LH) connection, ping  the specified IP address using the Ping utility bundled with Windows.
