PTZ units may also be regulated with the use of control panels – special manipulators, connected to the PC.

Below we give an example of using Samsung SSC-2000 device to control the camera.

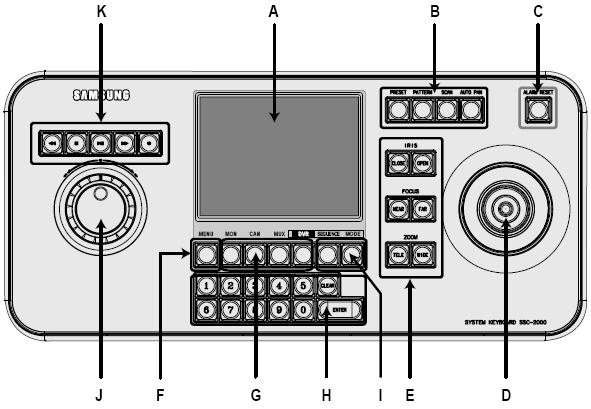

The layout of Samsung SSC-2000 control elements is shown in the figure.



Samsung SSC-2000 control elements are described in the table.

Control Element

Element

Function

A

LC-display

Displays operation conditions of the control panel

B

Set of buttons to control PTZ unit focus

PRESET
PATTERN
SCAN
AUTO PAN

C

Alarm reset button

ALARM RESET

D

Joystick for manual control of PTZ unit focus

UP
DOWN
LEFT
RIGHT

E

Set of buttons to control the camera lens (iris, focus, zoom)

IRIS CLOSE/OPEN
FOCUS NEAR/FAR
ZOOM TELE/WIDE

F

Menu button

Path to the control panel settings

G

Unit select button

MON/CAM/MUX/DVR

H

Digital keyboard unit

Is used to enter digits when required for control panel operations

I

Control over camera operating mode

SEQUENCE
MODE

J

Rotating disk manipulator

Is used to browse across recording archives

K

Control over camera recordings and archive viewing from the camera

PLAY/PAUSE
STOP
FAST FORWARD
REWIND
RECORDING

Note.

For more detailed information refer to the original User Manual for the given device.
