Axxon One supports RTSP streaming from cameras (see Get camera live stream and Get archive stream).
To configure the RTSP server, do the following:
- Go to the Devices tab.
- Select the Server object (see The Server object).

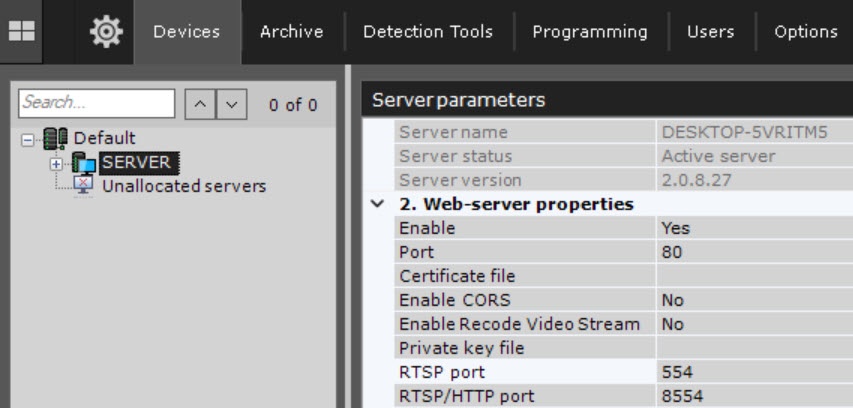

In the Web-server properties section, in the RTSP port field, specify the port number that you want to use to transfer data via RTSP protocol.
- Click the Apply
button.
Configuration of the RTSP server is complete.
To receive videos from the RTSP server, use the following link format:
| Live video | High-quality stream | rtsp://login:password@IP address:554/hosts/HOSTNAME/DeviceIpint.N/SourceEndpoint.video:0:0 |
| Low-quality stream | rtsp://login:password@IP address:554/hosts/HOSTNAME/DeviceIpint.N/SourceEndpoint.video:0:1 | |
| Archive video | rtsp://login:password@IP address:554/archive/hosts/HOSTNAME/DeviceIpint.N/SourceEndpoint.video:0:0/20160907T050548.723000?speed=1 | |
Attention!
You cannot receive video from cameras with MJPEG codec from the RTSP server. To receive video from cameras from the RTSP server, you must change the codec of cameras.
where:
| Parameter | Description |
|---|---|
| login:password | User username and password in Axxon One Attention! For the correct operation of the RTSP server, the username must meet the following conditions:
|
| hosts | Permanent part of a link |
| HOSTNAME | Server name (must be written only in uppercase letters) |
| N | camera ID in Axxon One (see Camera) |
| SourceEndpoint.video:0:0 | Permanent part of a link |
| speed | Mandatory parameter to receive archive stream |
