You can add links to other cameras to the Surveillance window. If you click such a link, you go to the corresponding camera (see Switching to other camera via a link in the Camera Window).
To add a link, do the following:
While holding the Ctrl button on your keyboard, left-click the camera icon on the Objects Panel (see Object panel), and drag it into the Surveillance window.

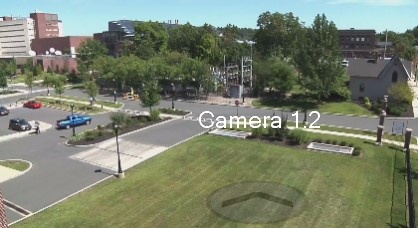

A link will be added to a window as an icon
.To rotate the icon, click
. Each click rotates the icon by 45°.Note
If you add a text note to the link (see 3), the icon disappears after you rotate it by 360°, and you will have just the text to switch to another camera.
To bring back the icon, click
.Note
To remove the link, click the
button.- If required, you can add a text comment to a link via the appropriate text field. To set font attributes, click the
button. - Use
buttons to scale up/down the text and the icon. - You can move the link just as any other object (see Moving input and output icons in a viewing tile).
When the layout is saved, you see the newly created link in the Surveillance window.
