Time zones

Create a time zone

A time zone is a set of time intervals during which the video stream from the camera is recorded into the archive.

To create a time zone:

1. Go to the Settings tab → the Options tab → Time zones.

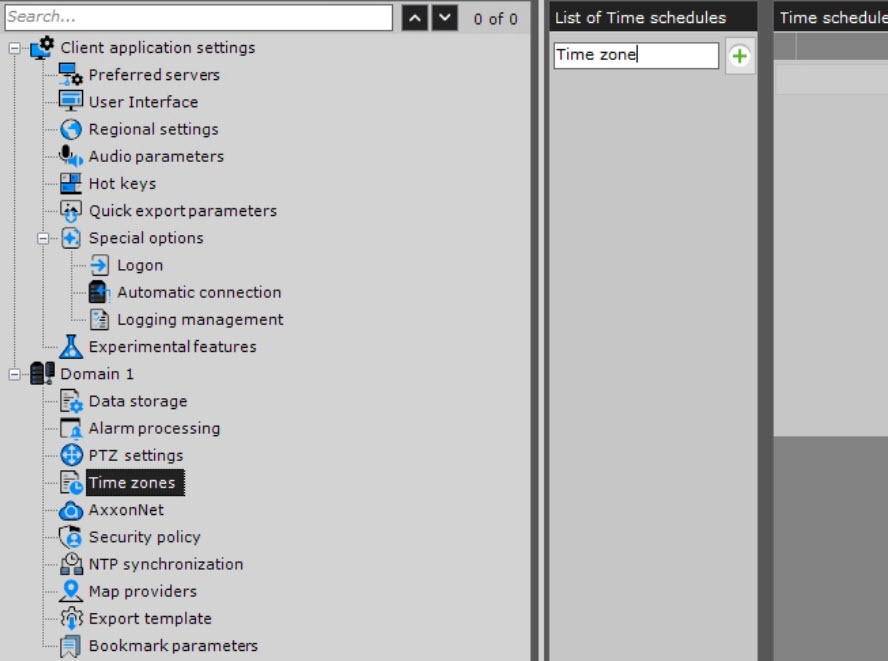

2. In the List of Time schedules column, enter the name of the time zone.

3. Click the button.

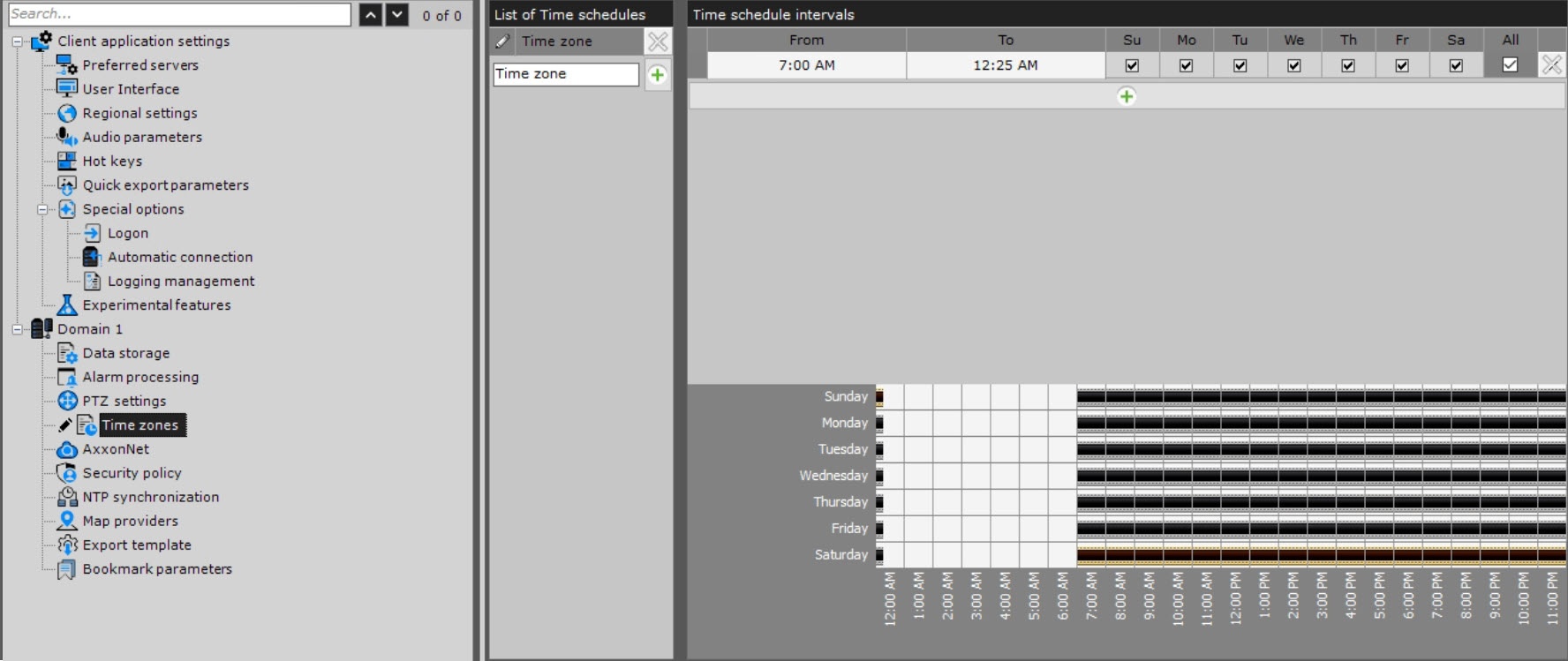

4. Configure the time intervals included in the zone:


   1. In the From column, set the start time of the interval, using the buttons accessible by double left-clicking.


      Button	Action
      	Move the start of the interval back by 1 hour
      	Move the start of the interval back by 5 minutes
      	Move the start of the interval forward by 5 minutes
      	Move the start of the interval forward by 1 hour

   2. In the To column, set the end time of the interval, using the buttons accessible by double left-clicking.
   3. Select the days of the week included in the interval by setting the checkboxes in the corresponding columns.

   4. Create the necessary number of intervals included in the time zone. A visual display of time intervals for each day of the week is available on the time chart. To delete a time interval, click the button in the corresponding row.

5. Click the Apply button. To cancel the actions, click the Cancel button.

Creation of a time zone is complete.

Delete a time zone

To delete a time zone:

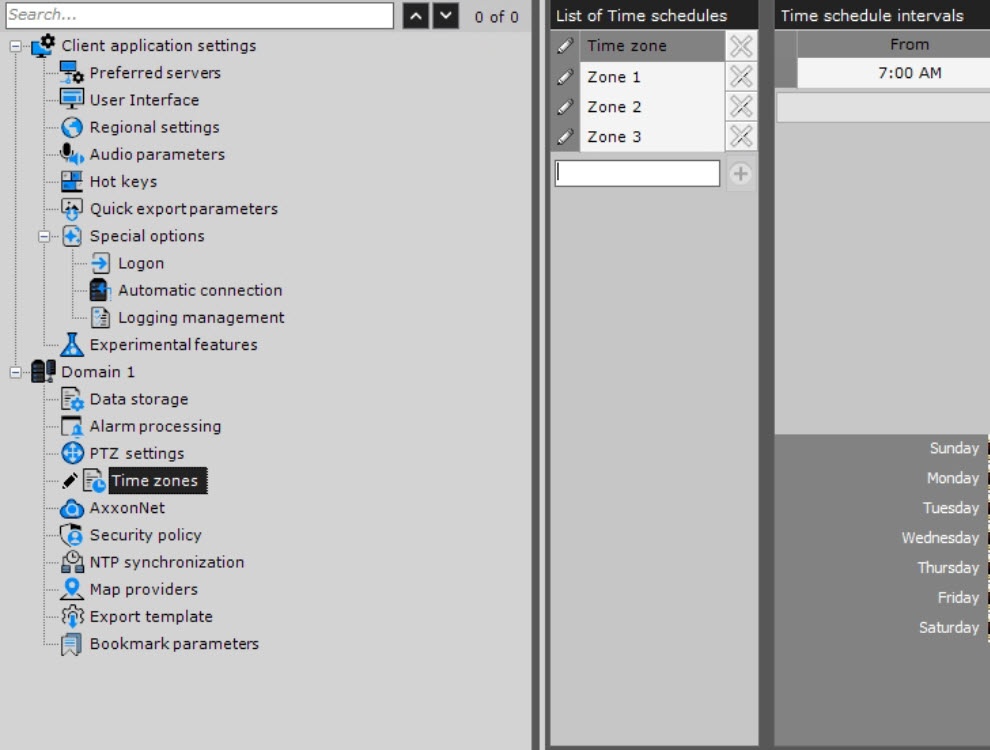

1. In the List of Time schedules column, click the button next to the zone that you want to delete.

2. Click the Apply button. To cancel the actions, click the Cancel button.

Deletion of a time zone is complete.
