By default, the size of the surveillance windows on the layout is proportional to the resolution of the video image.

For the surveillance windows to be of a fixed size and occupy the entire area of the layout, do the following:

  1. Go to Settings → Options (1) → User Interface (2).
  2. Clear the Adjust video frame border checkbox (4).
  3. Click the Apply button.
  4. Reopen the layout (see Layouts management).

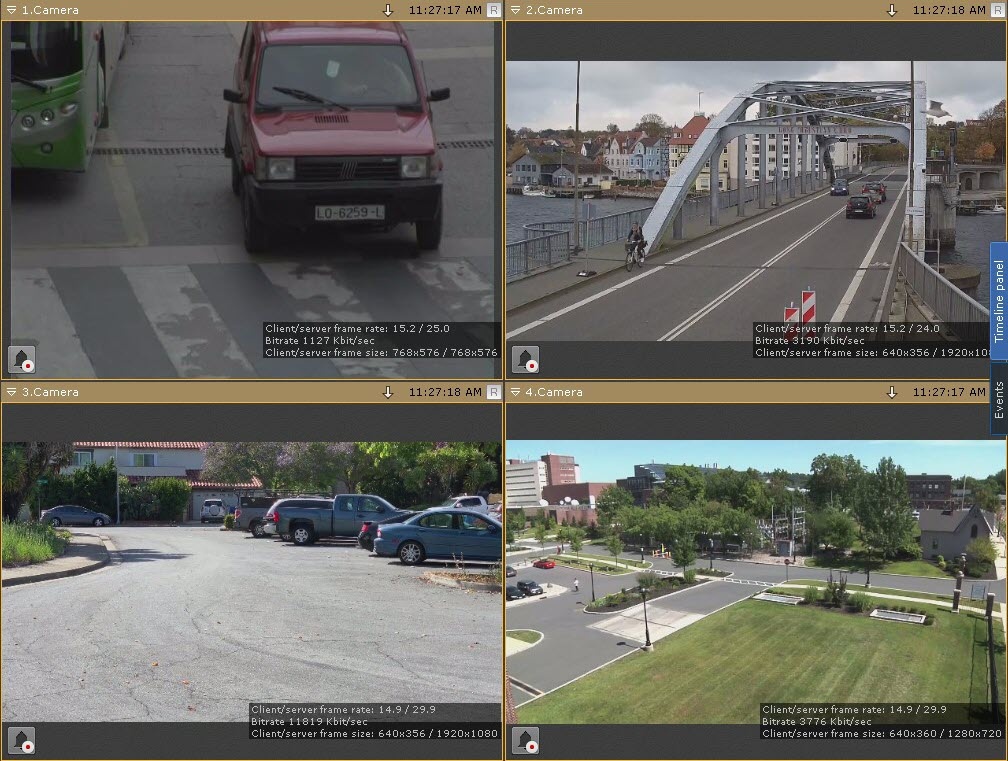

Configuring the surveillance windows is complete. The surveillance windows are of a fixed size and occupy the entire area of the layout. The video images keep their aspect ratio.

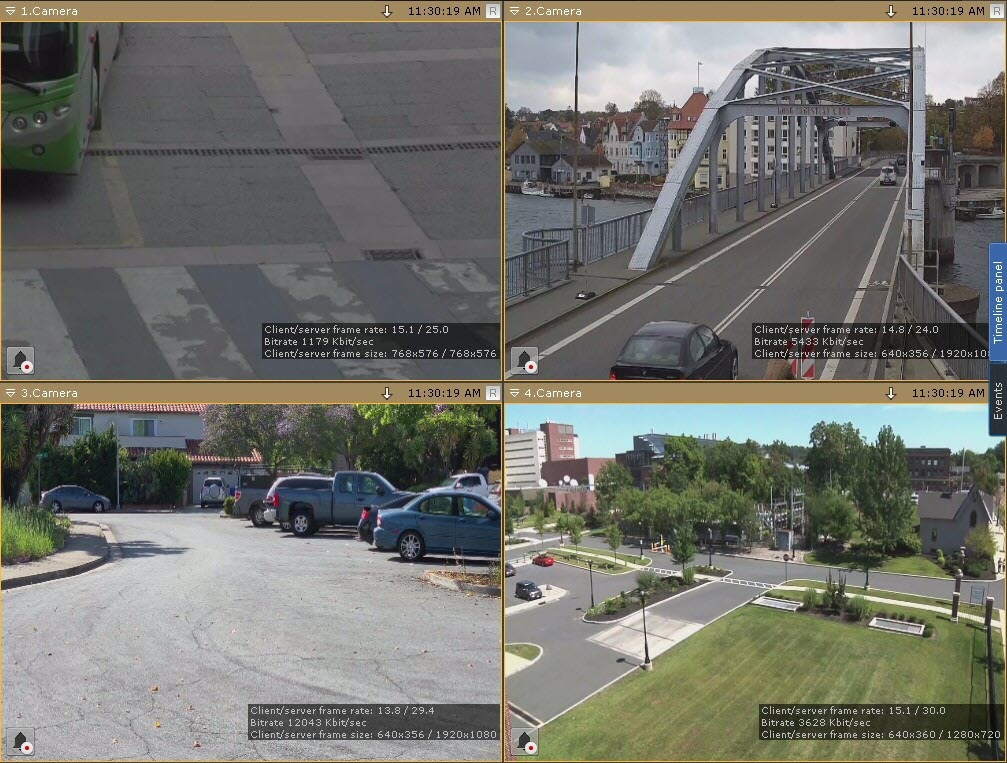

To expand the video image to the entire surveillance window, do the following:

  1. Clear the Keep aspect ratio checkbox (3).
  2. Click the Apply button.
  3. Reopen the layout (see Layouts management).

Configuring the surveillance windows is complete. The video image is expanded to the entire surveillance window.
