You can use Areazoom to zoom in on a selected area of the video frame.

Note

Areazoom is unavailable if the OnScreen PTZ mode is enabled (see Controlling a PTZ camera in the OnScreen PTZ mode).

To use Areazoom, do the following:

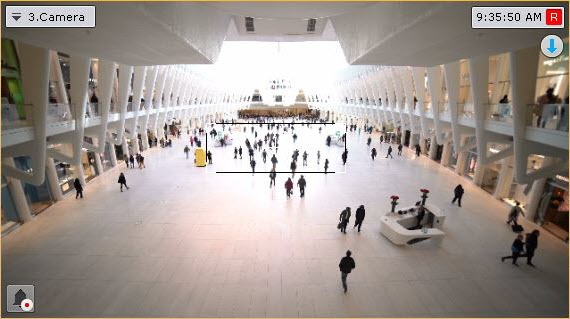

  1. Left-click and hold the mouse button in the frame of the video image. A frame point becomes the center of the area that you want to focus on.
  2. Select the size of the area by moving the cursor and release the left mouse button.

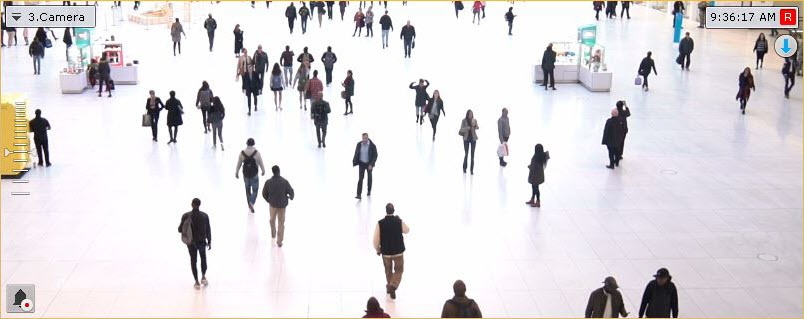

    After that, the lens orientation changes and the image is enlarged so that the selected area is displayed on the entire Surveillance window.

Note

This function is only available for certain cameras with analog telemetry. For more information, contact AxxonSoft.
