Configuring License plate recognition RR—Search in archive

To configure the License plate recognition RR—Search in archive detector, do the following:

Go to the Detectors tab.
Below the required camera, click Create… → Category: Vehicle → License plate recognition RR—Search in archive.

By default, the detector is enabled and set to recognize vehicle license plates in the archive.

If necessary, you can change the detector parameters. The list of parameters is given in the table:

Parameter	Value	Description
Object features
Video stream	Main stream	If the camera supports multistreaming, select the stream for which detection is needed. Selecting a low-quality video stream reduces the load on the server
Check in lists	Yes	The Check in lists parameter is disabled by default. If you want to use this detector to check in lists of license plates, select the Yes value (see Checking in lists of LPs)
Check in lists	No
Record objects trajectories	Yes	The metadata of the video stream is recorded to the database by default. Object trajectories are used to search in the archive (see Search in archive). To disable the parameter, select the No value
Record objects trajectories	No
Object identification
Name	License plate recognition RR—Search in archive	Enter the detector name or leave the default name
Enable	Yes	The detector is enabled by default. To disable the detector, select the No value
Enable	No
Type	License plate recognition RR—Search in archive	Name of the detector type (non-editable field)
Decoder mode	Auto	Select a processing resource for decoding video streams. When you select a GPU, a stand-alone graphics card takes priority (when decoding with Nvidia NVDEC chips). If there is no appropriate GPU, the decoding will use the Intel Quick Sync Video technology. Otherwise, CPU resources will be used for decoding
	CPU
	GPU
	HuaweiNPU
Period of ignoring repeated recognitions (s)	0	Enter the time in seconds during which repeated recognitions of license plates are ignored. The value must be in the range [0, 86400]
Country selection Attention! The more countries you select, the slower the recognition process and the higher the probability of errors in the recognition of license plates.
Countries	(Select all), Argentina, Armenia, Austria, Azerbaijan, Belarus, Belize, Belgium, Brazil, Brunei, Bulgaria, Chile, China, Colombia, Croatia, Cyprus, Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Honduras, Hungary, Indonesia, Ireland, Italy, Ivory Coast, Kazakhstan, Kyrgyzstan, Latvia, Lithuania, Luxembourg, Malaysia, Malta, Mexico, Moldova, Myanmar, Netherlands, New Zealand, North Korea, Panama, Paraguay, Peru, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, Spain, Sri Lanka, Sweden, Tajikistan, Tunisia, Turkey, Turkmenistan, UAE, Ukraine, Uruguay, USA, Uzbekistan, Venezuela, Vietnam	The Not used value is selected by default. In the window that opens, set one or several checkboxes next to the countries whose license plates must be recognized. Click the Apply button. To cancel the selection of countries, click the Cancel button
Country name 1 (deprecated)	(Not used), Argentina, Armenia, Austria, Azerbaijan, Bulgaria, Brunei, Belarus, Belize, Brazil, Belgium, Chile, China, Cyprus, Ivory Coast, Czech Republic, Germany, Colombia, Denmark, Estonia, Egypt, Finland, France, Georgia, Greece, Croatia, Honduras, Hungary, Indonesia, Ireland, Italy, Kyrgyzstan, Kazakhstan, North Korea, Lithuania, Luxembourg, Latvia, Malta, Malaysia, Mexico, Moldova, Myanmar, Netherlands, New Zealand, Panama, Paraguay, Peru, Poland, Portugal, Romania, Serbia, Russia, Sweden, Slovakia, Slovenia, Sri Lanka, Tunisia, Turkey, Turkmenistan, Tajikistan, Spain, UAE, Ukraine, Uruguay, USA, Uzbekistan, Vietnam	Attention! Starting with Detector Pack 3.17.1, this parameter is deprecated. Its value is only taken into account if you select the Not used value in the Countries parameter. Otherwise, this parameter is ignored. Argentina is selected by default. From the drop-down list, select one country whose license plates are actually found in the detection area and which need to be recognized
Country name 2 (deprecated)
Country name 3 (deprecated)
Country name 4 (deprecated)
Country name 5 (deprecated)
Basic settings
Detection mode	CPU	Select a processor for the detector operation (see Selecting Nvidia GPU when configuring detectors) Attention! It can take several minutes to launch the algorithm on Nvidia GPU. You can use caching to speed up future launches (see Optimizing the operation of License plate recognition RR—Search in archive on GPU in Windows OS, Optimizing the operation of License plate recognition RR—Search in archive on GPU in Linux OS).
	Nvidia GPU 0
	Nvidia GPU 1
	Nvidia GPU 2
	Nvidia GPU 3
	Intel GPU 0
	Intel GPU 1
	Intel GPU 2
	Intel GPU 3
Algorithm for detecting vehicle direction	By LP coordinates	The By LP coordinates algorithm is used by default. It works as follows: if the coordinates of the vehicle license plate shift from top to bottom (the vehicle moves towards the camera) and if the coordinates of the vehicle license plate shift from bottom to top (the vehicle moves away from the camera). Select the By LP scale change parameter if, in the surveillance window, the scale of the vehicle license plate increases (the vehicle moves towards the camera) and if the scale of the vehicle license plate decreases (the vehicle moves away from the camera)
Algorithm for detecting vehicle direction	By LP scale change
Direction of movement	Both	By default, an event is created when a vehicle moves in Both directions. If you want the event to be created when a vehicle moves from the camera (Outgoing) or to the camera (Incoming), select the corresponding value
	Outgoing
	Incoming
Advanced settings
Track lifespan	Yes	By default, the parameter is disabled. If you want to view the track lifespan for an object in seconds, select the Yes value
Track lifespan	No
Number of frames for analysis (Intel GPU only)	8 (low latency and low performance)	Attention! The parameter is active only if you select the Intel GPU 0, 1, 2, or 3 values in the Detection mode parameter. The parameter determines how many frames are buffered before being sent simultaneously to the neural network model for processing. This mechanism optimizes the load on the Intel GPU. The higher the value, the higher the latency and performance. The default value is 8 (low latency and low performance)
	16 (medium latency and medium performance)
	32 (high latency and high performance)
Minimum LP recognition quality (%)	80	Specify the minimum quality of license plate recognition as a percentage. The higher the minimum recognition quality, the fewer false events. The value must be in the range [0, 100]
Frame size change	1920	The analyzed frames are scaled down to a specified resolution (1920 pixels on the longer side) by default. The value must be in the range [640, 10000]. The following algorithm is used: If the longer side of the source image exceeds the value specified in the Frame size change field, it is divided by two. If the resulting resolution falls below the specified value, the algorithm stops, and this resolution will be used further. If the resulting resolution still exceeds the specified value, it is divided by two until it is less than the specified resolution. Note For example, the source image resolution is 20481536, and the specified value is set to 1000. In this case, the source resolution will be halved two times (512384), as after the first division, the number of pixels on the longer side exceeds the specified value (1024 > 1000). If detection is performed on a higher resolution stream and detection errors occur, we recommend reducing the compression.

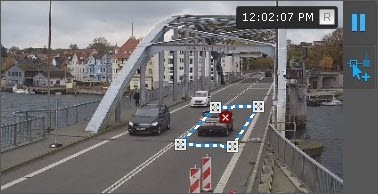

In the window, specify the area in which license plate detection and recognition are performed. To do this, click in the preview window and select Detection area (polygon). You can adjust the area by moving the anchor points .

Note

For convenience of configuration, you can "freeze" the frame. Click the button. To cancel the action, click this button again.
The detection area is displayed by default. To hide it, click the button. To cancel the action, click this button again.
To delete the selected area, click the button.

To save the parameters of the detector, click the Apply button. To cancel the changes, click the Cancel button.

Configuration of the License plate recognition RR—Search in archive detector is complete. If necessary, you can create and configure the necessary sub-detectors on the basis of the License plate recognition RR—Search in archive (see Standard sub-detectors).
