State statistics

Purpose

State statistics is designed to monitor the number of objects in the specified states.

Features

State statistics displays the number of objects of the selected type that are in the particular state in the table and on the chart.

Interface description

The State statistics interface window is shown in the figures:

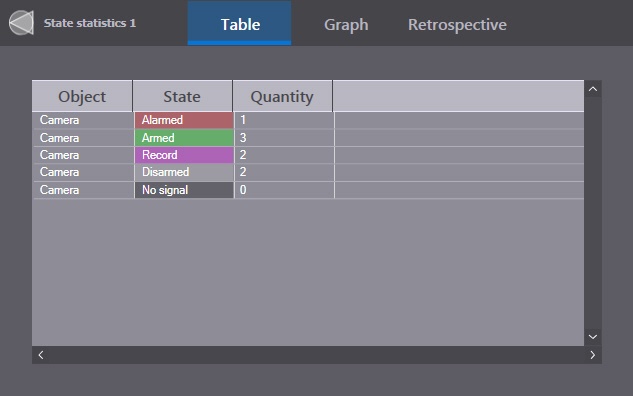

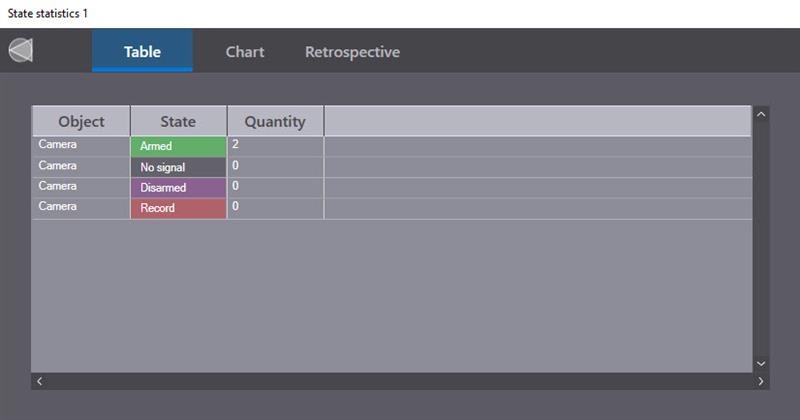

The Table tab displays the list of states and the number of objects in each of these states.

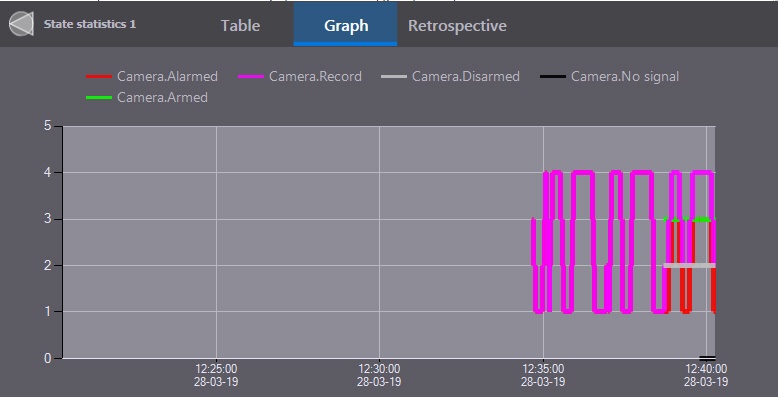

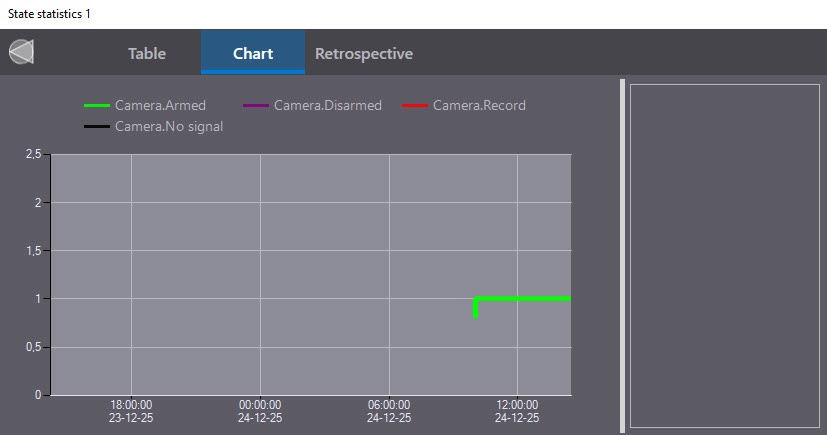

The Chart tab displays the change of object states. The list of objects that are currently in certain states is displayed in the right part of the window next to the chart. The date and time are marked on the horizontal axis, and the number of objects on the vertical one. The decryption of color values is given at the top of the chart.

The selection of objects and the number of points on the chart are set during the system setup (see Selecting the objects to be included in State statistics and configuring the pixels number).

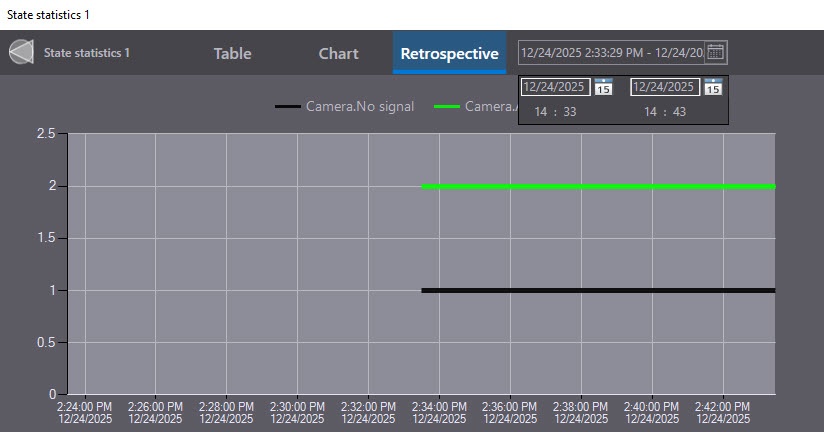

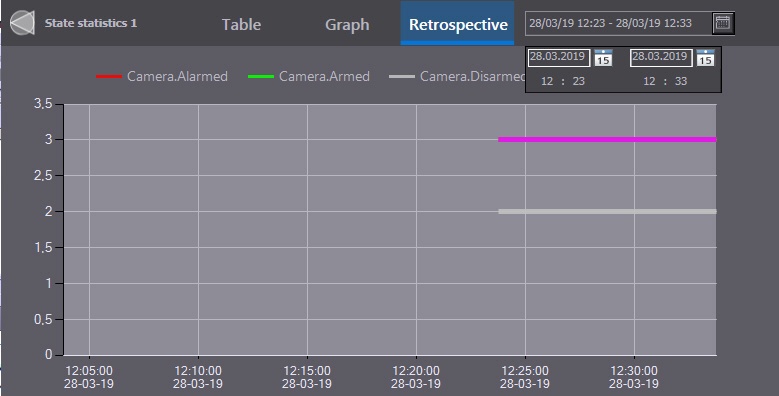

The Retrospective tab displays the chart of states for the period selected in the calendar in the upper right corner. The axis marks match with marks on the Chart tab.
