The layout defines the number and location of windows on the monitor. To change the location of windows on the monitor, drag them with the mouse. The operator can compose custom window layouts if they are given rights to control the Monitor object.

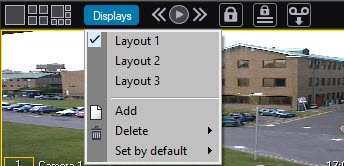

To control the layout, use the menu, called up by the Displays button on the video monitor tools panel.



Note

The layouts can also be managed using the display manager—see Configuring and activating the layouts.

Creating and deleting layouts

To develop a new layout:

  1. Click the Displays button on the video monitor.
  2. Select the Add option in the menu.
  3. Enter the name of the new layout in a dialog box.

Then a new layout will appear in the layout list.

To select a layout, click its name in the list. To delete an existing layout, use the Delete menu command.

Note

If the Overlay 1 mode is chosen during the system setup and the monitor displays six surveillance windows, the surveillance windows layout cannot be changed.

Changing the location of windows on the monitor with a mouse can also be prohibited by the DisableReplaceCam registry key—see Registry keys reference guide.

The Add and Delete options can be unavailable depending on the user rights (see Restriction of administration, control, and monitoring rights).

Default layouts

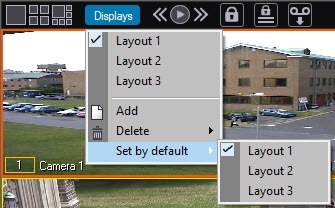

The Displays menu also allows assigning default layouts. The default layout will be displayed when Axxon PSIM is launched. Use the UseDefaultLayoutOnlyAtStartup registry key to display the default layout each time the corresponding screen with the Video surveillance monitor is displayed (see Registry Keys Reference Guide).

Select Displays → Set by default, then select a layout to be set by default.

The default layout is highlighted in bold.
