To register operator rights, do the following:

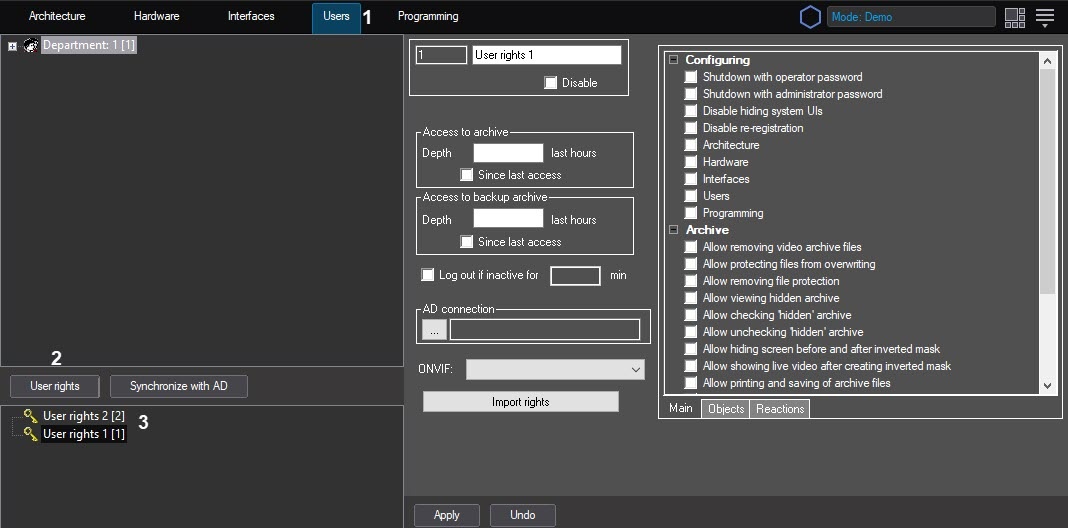

  1. In the System settings window, go to the Users tab (1).
  2. Create the User rights object in one of the following ways:
    1. If no user rights have been created yet, click the User rights button (2).
    2. If at least one user right is registered in the system, and there is at least one object in the object tree located below the User rights button on the Users tab, then the creation of the User rights object is performed in the standard way from the context menu that you can open by clicking the existing object.
  3. The created object appears in the object tree below the User rights button, and the settings panel for this object opens on the right side of the System setting window (3).

Note

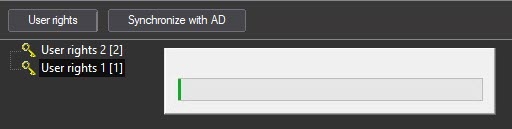

If the User rights are created in the system, then when you open the Users tab, an indicator of the rights loading process can be displayed. Wait until this indicator disappears before you perform any actions on this tab.

This completes registration of the operator rights.
