Connection of objects with cameras

In the Axxon PSIM software package, it is possible to link cameras to objects.

Objects assigning is performed on the settings panel of the Objects link object on the Programming tab of the System settings dialog window.

It is possible to link several cameras to each object and several objects to each camera. Also, it is possible to link groups of objects and cameras.

To configure the connection of objects with cameras, do the following:

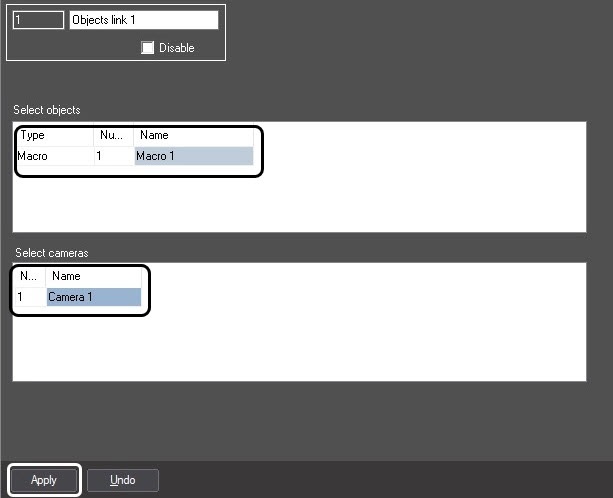

1. Go to the settings panel of the Objects link object.

2. In the Select objects table, specify the type, identification number, and name (is entered automatically after selecting the type and ID of the camera) of all required objects.
3. In the Select cameras table, specify the identification number and names of all required cameras.
4. To save changes, click the Apply button.

To get a list of objects linked to the camera and a list of cameras linked to the object, use the script (see The GetLinkedObjects method section).

Configuring of connection objects with cameras is completed.
