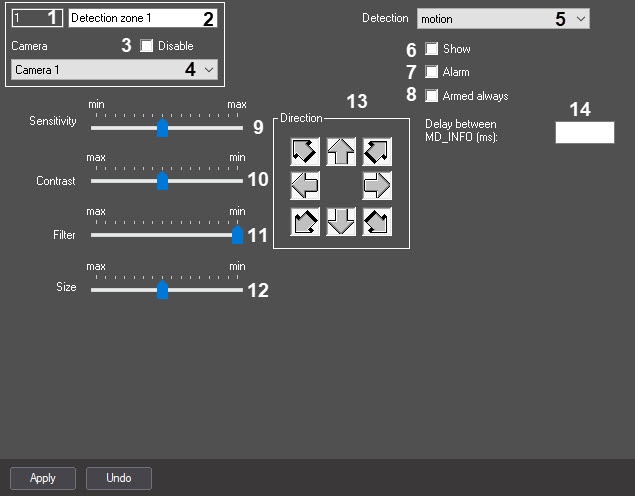

The Detection zone object is used to register and configure smart video detectors. The settings panel of the Detection zone object is shown in the figure:

The table describes the parameters of the settings corresponding to the elements of the settings panel of the Detection zone object:

Parameter

Method for setting the parameter value

Parameter description

Representation

Default value

Value range

1

The Identification number*
field

Automatically

Displays the identification number of the Detection zone object in the video surveillance system with distributed architecture

Digits, letters, periods, hyphen, dash, and underscore

NA

Depends on the number of the Detection zone objects in the video surveillance system with distributed architecture

2

The Name*
field

Enter the value in the field

Sets the name of the Detection zone object in the video surveillance system with distributed architecture

Latin alphabet, Cyrillic, digits and service characters

Detection zone

A line containing a sequence of any characters (letters, digits, service characters except > and < characters), case-insensitive.

Number of charactersfrom 1 to 60

3

The Disable
checkbox

Set the checkbox

Disables the Detection zone object in the video surveillance system with distributed architecture

Boolean type

Clear

Setthe Detection zone is disabled and isn't used

Clearthe Detection zone object is enabled and used

4

The Camera
drop-down list

Select the value from the list

Sets the Camera parent object of the video surveillance system with distributed architecture to which the given Detection zone object belongs

Names of the Camera objects registered in the system

Name of the Camera parent object

Depends on the number of the Camera objects in the video surveillance system with distributed architecture

5

The Detection
drop-down list

Select the value from the list

Sets the type of the used detector

Names of the detectors in the system

Motions

  • Motion;
  • Focus;
  • Stability;
  • Background change;
  • Blind;
  • Cover;
  • Infrared

6

The Show
checkbox

Set the checkbox

Displays the frame border of an object in the camera field of view.

This parameter is active only when you select the following detectors from the Detection drop-down list: motioninfrared

Boolean type

Clear

Setthe object frame border is displayed in the video surveillance area

Clearthe object frame border isn't displayed in the video surveillance area

7

The Alarm
checkbox

Set the checkbox

Enables alarm generation on the camera and automatic recording of the video signal from the camera upon alarms of the selected detector

Boolean type

Clear

Set—on alarm received from the selected detector, an alarm is generated on the camera, and automatic recording of the video signal is performed

Clearalarm isn't generated on the camera, and automatic recording of the video signal isn't performed on the alarm received from the selected detector

8

The Armed always
checkbox

Set the checkbox

Sets the Armed always state for the selected detector

Boolean type

Clear

Set—the detector is always in the Always armed state

Clearthe operator can disarm the detector

9

The Sensitivity
slider

Set the slider in the position

Sets the setting parameter of the same name for the selected detector. Depends on the type of the selected detector.

  • Motion detector

The value of this parameter corresponds to the minimum value of the averaged brightness of the moving object, at which the detector generates an event only at its motion and not at the video signal noise (including snow, rain, and so on). The HIGHER the sensitivity value, the more sensitive the detector is.

  • Focus detector

The value of this parameter characterizes the minimum degree of accuracy loss, expressed in the difference between the average number of outlines and the number of outlines in the incoming frame at which the detector must generate an event.

  • Stability detector

The value of this parameter characterizes the minimum degree of accuracy loss, expressed in the difference between the average number of outlines and the number of outlines in the incoming frame at which the detector must generate an event.

  • Background change detector

This parameter characterizes the deviation of the integral brightness of the frame from the average value at which the detector must generate an event.

  • Blind detector

This parameter corresponds to the rate of illumination of the video expressed in the difference between the positions of medians of the brightness chart of the incoming frame and the reference illumination frame at which the detector must generate an event.

  • Cover detector

This parameter corresponds to the rate of narrowing of the brightness chart of the frame, that is, the estimation of the frame filling with gray color, at which the detector must generate an event.

  • Infrared detector

The value of this parameter corresponds to the minimum value of the averaged brightness of the moving object, at which the detector generates an event at its motion

NA

Average

NA

10

The Contrast
slider

Set the slider in the position

Sets the minimum contrast of the object at which the detector generates an event at its motion. The HIGHER the specified contrast value, the more different the neighboring b/w elements must be so that the detector considers them as different objects.

Note. It isn't used for all detector types

NA

Average

NA

11

The Filter
slider

Set the slider in the position

Sets the setting parameter of the same name for the selected detector. Depends on the type of the selected detector.

  • Motion detector, infrared detector

The value of this parameter corresponds to the threshold of color processing of objects, at which the detector must generate an event. The HIGHER the filtering, the more different the neighboring elements (pixels) of the image must be so that the detector considers them as different objects.

  • Background change detector, Stability detector

The value of this parameter corresponds to the contrast threshold of the detected object.

Note. It isn't used for other detector types

NA

Minimum

NA

12

The Size
slider

Set the slider in the position

Sets the setting parameter of the same name for the selected detector. The value of this parameter corresponds to the minimum size of the detected object relative to the frame size.

Note. It isn't used for all detector types

NA

Average

NA

13

The Direction
set of buttons

Press the arrow button

Sets the direction of search for the motion detector

8 possible directions of object movement in the frame

All directions are included: up, down, to the left, to the right, up and to the left, up and to the right, down and to the left, down and to the right

Up, down, to the left, to the right, up and to the left, up and to the right, down and to the left, down and to the right

14

The Delay between MD_INFO (ms)
field

Enter the value in the field

Sets the time period in milliseconds between the MD_INFO events of the CAM_ZONE detector in the Event viewer (if the MD_INFO event is included in ddi)

Integer number

NA

>=0

*Name of the element isn't displayed in the settings panel of the given object

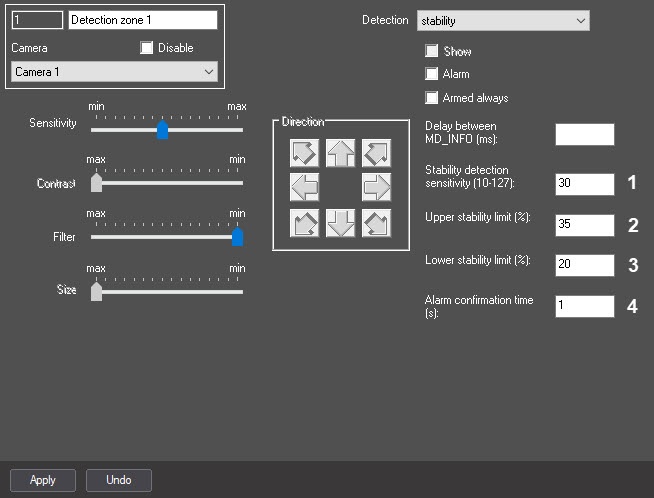

Detection stability

Parameter

Method for setting the parameter value

Parameter description

Representation

Default value

Value range

1The Stability detection sensitivity (10-127)
field
Enter the value in the field

Sets the threshold of difference between the brightness of the pixel in the current frame and the background

Integer number30From 10 to 127
2The Upper stability limit (%) field
Enter the value in the field

Sets the maximum permissible percentage of the stabilized frame pixels that differ from the background by more than the value in the Stability detection sensitivity field, exceeding which the system starts monitoring the alarm status

Integer number35From 0 to 100%
3The Lower stability limit (%) fieldEnter the value in the field

Sets the maximum permissible percentage of the stabilized frame pixels that differ from the background by more than the value in the Stability detection sensitivity field before reaching which the frame is considered stable

Integer number20From 0 to 100%
4The Alarm confirmation time (s)
field
Enter the value in the field

Sets the time period in seconds during which the Upper stability limit must be exceeded to generate an alarm

Integer number1>0
