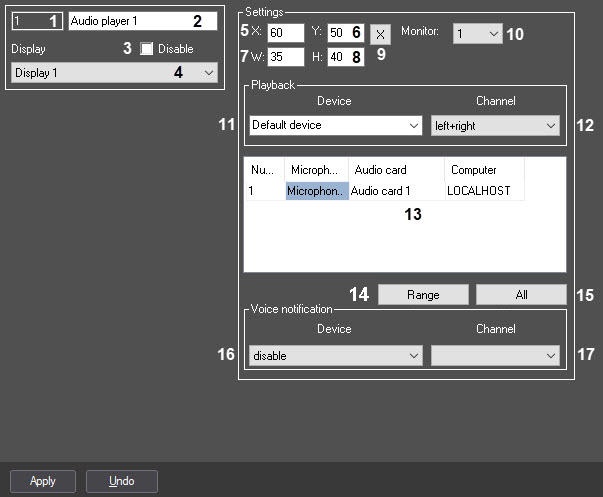

The settings panel of the Audio player interface object is shown in the figure.
The table describes the setting parameters of the Audio player interface object.
№ | Parameter | Method for setting the parameter value | Parameter description | Representation | Default value | Value range |
1 | The Identification number* | Automatically | Displays the identification number of the Audio player interface object in the system | Digits, letters, periods, hyphen, dash, and underscore | NA | A line containing numbers, letters, periods, hyphen, dash, and underscore Depends on the number of the Audio player objects in the system |
2 | The Name* | Enter the value in the field | Sets the name of the Audio player object in the system | Latin alphabet, Cyrillic, digits and service characters | Audio player | A line containing a sequence of any characters (letters, digits, service characters except > and < characters), case-insensitive. Number of characters—from 1 to 60 |
3 | The Disable | Set the checkbox | Disables the Audio player object in the system | Boolean type | Clear | Set—the Audio player object is disabled and isn't used Clear—the Audio player object is enabled and used |
4 | The Display | Select the value from the list | Sets the Display parent object for the given Audio player object | Names of the Display objects registered in the system | Name of the Display parent object | Depends on the number of the Display objects in the system |
The Settings group | ||||||
5 | The X field | Enter the value in the field | Sets the X coordinate in the horizontal axis for the upper left corner of the audio player window | % of the screen width | 60 | From 0 to M*100, where M is the number of the installed monitors |
6 | The Y field | Enter the value in the field | Sets the Y coordinate in the vertical axis for the upper left corner of the audio player window | % of the screen height | 50 | From 0 to M*100, where M is the number of the installed monitors |
7 | The W field | Enter the value in the field | Sets the width of the audio player window | % of the screen width | 35 | From 35 to M*100, where M is the number of the installed monitors |
8 | The H field | Enter the value in the field | Sets the height of the audio player window | % of the screen height | 40 | From 40 to M*100, where M is the number of the installed monitors |
| 9 | The | Click the button | Opens a window to set the position and size of the audio player window using the mouse | NA | NA | NA |
| 10 | The Monitor drop-down list | Select the value from the list | Sets the number of the physical monitor, the coordinates for which are set. The monitors are numbered in the order of their physical location, from left to right, from top to bottom. The 1 number corresponds to the upper left monitor, regardless of which monitor is set as main or what number the monitor has in OS | Sequence of numbers | 1 | From 1 to 16 |
| The Playback group | ||||||
11 | The Device | Select the value from the list | Sets the audio device to which the audio signals must be transmitted for playback. This setting is available only if the display with this audio player is assigned to one computer in the distributed system (see Assigning the displays to the operator workstations). If the display is assigned to multiple computers, this setting cannot be changed, and only the default device can be used | Names of audio devices registered in the system | Default device | Depends on the number of audio devices in the system. Standard sound card is the default device |
12 | The Channel | Select the value from the list | Sets the channel for the audio signal playback. This setting is available only if the display with this audio player is assigned to one computer in the distributed system (see Assigning the displays to the operator workstations). If the display is assigned to multiple computers, this setting cannot be changed | Audio signal playback channels | left+right | Left+right—audio signal is transmitted to the left and right channels of the audio device Left—audio signal is transmitted to the left channel of the audio device Right—audio signal is transmitted to the right channel of the audio device |
| The Microphones group* | ||||||
The Microphones selection table* | ||||||
13 | The Number | Select the value from the list/ Automatically | Sets the microphone number, the audio signals from which must be recorded and/or played back | Sequence of numbers | NA | Depends on number of the Microphone objects in the system |
The Microphone | Automatically/ Select the value from the list | Sets the microphone, the audio signals from which must be recorded and/or played back | Names of the Microphone objects registered in the system | NA | Depends on number of the Microphone objects in the system | |
The Audio card field | Automatically | Displays the name of the Audio card object | Name of the Audio card object | NA | NA | |
The Computer field | Automatically | Displays the name of the Computer object | Name of the Computer object | NA | NA | |
| 14 | The Range button | Click the button | Opens the window for bulk addition of microphones | NA | NA | NA |
| 15 | The All button | Click the button | Adds all microphones created in the hardware tree to the list | NA | NA | NA |
| The Voice notification group | ||||||
16 | The Device | Select the value from the list | Sets the voice notification device when an alarm is registered by cameras | Names of the voice notification devices registered in the system | disable | Depends on the voice notification devices registered in the system. Standard sound card is the default device |
17 | The Channel | Select the value from the list | Sets the channel of the voice notification when an alarm is registered by cameras | Channels to which the audio signal is sent | NA |
|
*Name of the element isn't displayed in the settings panel of the given object
