The settings panel of the Security zone object

The Security zone object is used for the general configuration of Axxon PSIM.

The settings panel of the Security zone object is shown in the figures with tabs. The tables describe the settings.

The Basic settings tab:

№	Parameter	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
1	The Holidays field	Automatically	Displays the list of calendar days that are determined as holidays in Axxon PSIM	List of dates. Date format: DD-MM-YY	NA	NA
2	The Add button	Click the button	Opens the Calendar window to select the date of a new holiday	NA	NA	NA
3	The Delete button	Click the button	Deletes the selected holiday date from the holidays list	NA	NA	NA
4	The Edit button	Click the button	Opens the Calendar window to change the date of the selected holiday in the list	NA	NA	NA
5	The Protocol clear time field	Enter the value in the field using the up and down buttons	Sets the time of the day at which to start cleaning up the event viewer database according to the Events archive length parameter	HH:MM:SS	Current system time at the moment of opening the object settings panel	From 00:00:00 to 23:59:59
6	The Events archive length days field	Enter the value in the field	Sets the number of days to store information about the events registered by Axxon PSIM and recorded into both the event viewer and the incident server. This parameter affects all computers in a distributed system	Days	3	>=1
7	The Object code field	Enter the value in the field	Sets the number of the access control card, which is automatically displayed in the settings panel of the User object when the object is created in the Object code field	Sequence of numbers	NA	More than 1
8	The Starting configuration drop-down list	Select the value from the list	Sets the macro, which runs automatically when starting Axxon PSIM	Names of the Macro objects registered in the system	NA	Depends on the number of the Macro objects created in the video surveillance system with distributed architecture
9	The Connections in architecture checkbox	Set the checkbox	Sets the computers with which the Computer object must exchange the data about the system configuration parameters: with all computers in the video surveillance system with distributed architecture or only with the Computer object on the basis of which the given object is created	Boolean type	Clear	Set—when you create a new computer, the Connection checkboxes on the Architecture tab are set for all computers in the architecture Clear—when you create a new computer, the Connection checkbox on the Architecture tab is set only for the computer from which this new object is created
10	The DNS instead of IP allowed checkbox	Set the checkbox	Sets the address of the server/Remote Administrator’s workstation/Remote client on the Architecture tab as DNS name, not only IP address	Boolean type	Clear	Set—when you configure the interaction of the computers in the distributed system, you can specify the DNS name of the server/Remote Administrator’s workstation/Remote client instead of its IP address on the Architecture tab. At the same time, the verification of the entered address is disabled Clear—when you configure the interaction of the computers in the distributed system, specify the IP address of the server/Remote Administrator’s workstation/Remote client on the Architecture tab
11	The Ping (s) field	Enter the value in the field	Sets the check period for the computer connection to the server Note. For servers, this value is saved automatically in the CheckPingPeriod parameter. For the Remote client, you can specify the value manually in the CheckPingPeriod parameter (see Registry keys reference guide)	Sequence of numbers	10	>=1
12	The Internal synchronization: offline checkbox	Set the checkbox	Enables the offline synchronization of events	Boolean type	Set	Set—the offline synchronization is enabled. When the computer is reconnected, it gets all events for the no-connection time period Clear—the offline synchronization is disabled. When the computer is reconnected, it doesn't get the events for the no-connection time period
12	The Internal synchronization: online checkbox	Set the checkbox	Enables the online synchronization of events	Boolean type	Set	Set—the online synchronization is enabled. Events are sent right after they occur according to the configuration parameters of the computer interaction in the distributed system Clear—the online synchronization is disabled. Events aren't sent
13	The Show documentation by clicking F1 checkbox	Set the checkbox	Enables opening documentation in the pdf format by pressing the F1 button when Axxon PSIM is running. The Administrator's Guide section is opened on the server and the Remote Administrator's workstation; the Operator's Guide section is opened on the Remote client	Boolean type	Clear	Set—the documentation is displayed by pressing the F1 button Clear—the feature of displaying the documentation by pressing the F1 button is disabled
14	The SMS confirmation drop-down list	Select the value from the list	Sets the Short Message object for the two-factor authentication—see Configuring two-factor authentication	Names of the Short Message objects registered in the system	NA	Depends on the number of the Short Message objects created in the system
15	The Debug statistics button	Click the button	Opens the window with the events queue statistics	NA	NA	NA
16	The Administrator’s password button	Click the button	Opens the Set password window used for changing the administrator’s password	NA	NA	NA

*Name of the element isn't displayed in the settings panel of the given object

The Date and time format tab

№	Parameter	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
1	The Date format drop-down list	Select the value from the list	Sets the format of the date that is displayed in the incident manager, operator protocol, and video surveillance monitor in the current date field and when you work with the archive	List of types of date format	Current	Current—the date format set in the OS; dd/MM/yy—the day/month/year format; MM/dd/yy—the month/day/year format; yyyy-MM-dd—the year/month/day format
2	The Time format drop-down list	Select the value from the list	Sets the format of the time that is displayed in the incident manager, operator protocol, and video surveillance monitor in the current date field and when you work with the archive	List of types of time format	Current	Current—the time format set in the OS; HH:mm:ss—24-hour format; hh:mm:ss tt—12-hour format

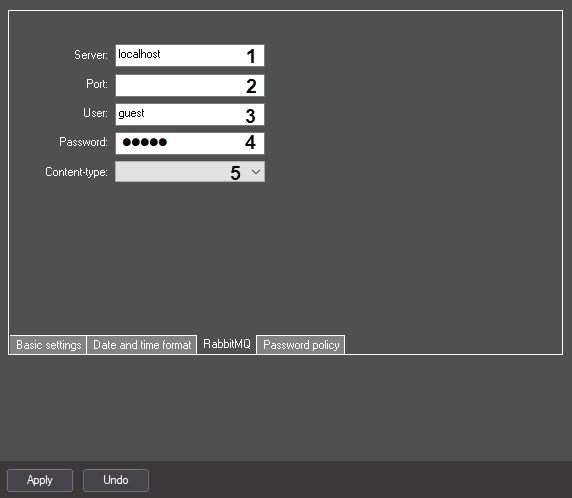

The RabbitMQ tab

№	Parameter	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
1	The Server field	Enter the value in the field	Sets the RabbitMQ server address	Latin alphabet, digits, and service characters	localhost	Server IP address or name
2	The Port field	Enter the value in the field	Sets the RabbitMQ server port	Non-negative integers	NA	From 0 to 65535 If the port is 0 or not specified, RabbitMQ won't run
3	The User field	Enter the value in the field	Sets the RabbitMQ server username	Latin alphabet, digits, and service characters	guest	Depends on the registered RabbitMQ users
4	The Password field	Enter the value in the field	Sets the RabbitMQ server user password	Latin alphabet, digits, and service characters	guest	Depends on the registered RabbitMQ users
5	The Content-type drop-down list	Select the value from the list	Sets the type of the sent/received content	Available types of content	plain/text	application/json—a message in JSON format is sent; plain/text—The Axxon PSIM event is sent in the "TYPE\|ID\|EVENT" format

The Password policy tab

№	Parameter	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
1	The User password setting policy checkbox	Set the checkbox	Changes the user password settings	Boolean type	Clear	Set—you can change the user password settings Clear—you cannot change the user password settings
The User password policy table* Note. The User password policy table* is active only after you set the User password setting policy checkbox
2	The Password length field	Enter the value in the field	Sets the password length	Sequence of numbers	8	>0
	The Small letters drop-down list	Select the value from the list	Uses small letters when creating a password	Boolean type	OK	OK—you can use small letters No—you cannot use small letters
	The Capital letters drop-down list	Select the value from the list	Uses capital letters when creating a password	Boolean type	OK	OK—you can use capital letters No—you cannot use capital letters
	The Use numbers drop-down list	Select the value from the list	Uses numbers when creating a password	Boolean type	OK	OK—you can use numbers No—you cannot use numbers
	The Symbols drop-down list	Select the value from the list	Uses symbols when creating a password	Boolean type	OK	OK—you can use symbols No—you cannot use symbols

*Name of the element isn't displayed in the settings panel of the given object
