Note

When you go to the Journal tab, information about the status of running tasks is automatically updated.

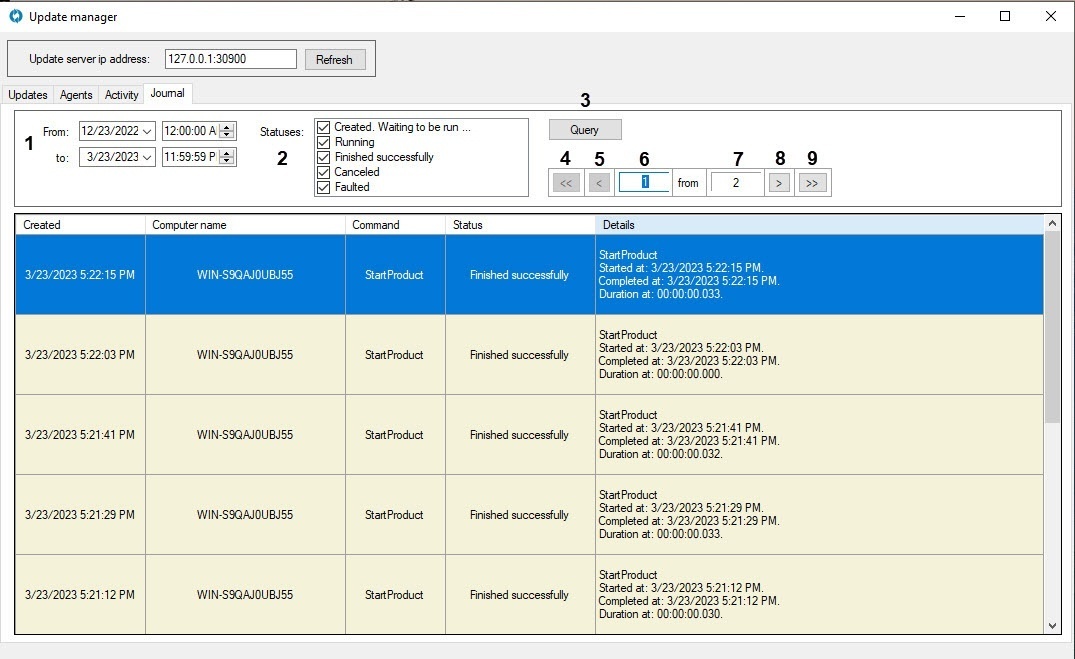

The Journal tab displays a list of all actions on the update server. At the top, there is a selection of dates and statuses that you can use to filter the journal.

To display the journal, do the following:

  1. In the From and to fields, select the period to display the actions (1).
  2. Set the checkboxes next to those operation statuses that you want to display (2).
  3. Click the Query button (3).

As a result, the table displays the list of actions, taking into account the set filters. If there are several pages of the journal, you can navigate through them (see the numbering on the screenshot):

  • 4—go to the first page;
  • 5 and 8—previous/next page;
  • 6—number of the displayed page;
  • 7—number of pages;
  • 9—go to the last page.

The journal contains information about all operations. The Activity tab contains information about operations that are running (see The Activity tab).
