Function

The Backup archive panel is used to control and manage the Backup archive.

List of features

The Backup archive panel performs the following functions:

  1. Monitoring of the Backup archive;
  2. Manual video archiving;
  3. Automatic video archiving;
  4. Selection of the camera for which you need to perform backup archiving.
  5. Setting the time interval of video recordings for archiving (for each camera individually).

Interface description

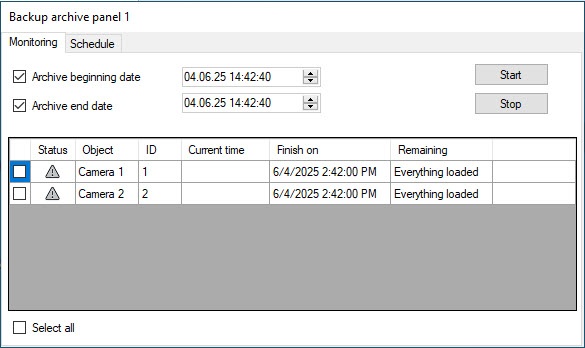

The figure shows the interface of the Backup archive panel.



The Monitoring tab is used to monitor and control the Backup archive, and the Schedule tab is used to specify the Backup archiving parameters in automatic mode.

The Monitoring tab contains the following elements:

  1. The Start and Stop buttons for manual archiving;
  2. Fields for specifying the time period of archiving;
  3. Table for selecting cameras and state of archiving progress;
  4. The Select all checkbox is used to select (deselect) all cameras at a time.

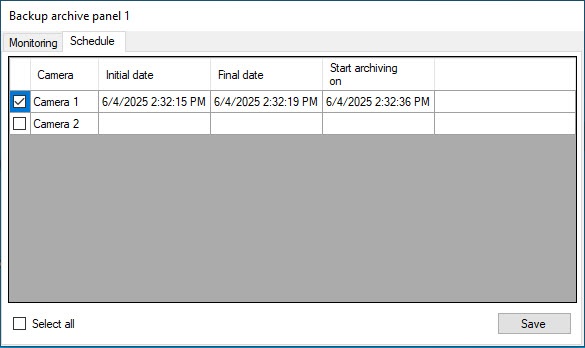

The Schedule tab contains the following elements:

  1. Table for selecting cameras and state of archiving progress;
  2. The Select all checkbox is used to select (deselect) all cameras at a time.
  3. The Save button is used to save the archiving schedule.

Note

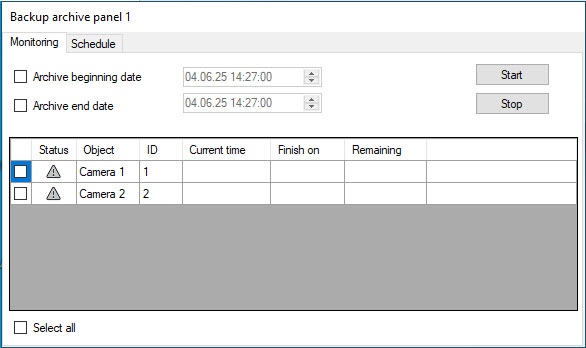

By default, the information about the current state of the Backup archive isn't sent to the server. If it is necessary to send the events to the server, use the ArchStatus=1 parameter of the HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\AxxonSoft\Axxon PSIM\Video registry key (see Registry keys reference guide); for the information on how to work with the registry, see Working with Windows OS registry). When you use the ArchStatus=1 parameter of the HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\AxxonSoft\Axxon PSIM\Video registry key, the window of the Backup archive settings panel looks like this:
