Thermal camera operation

Axxon PSIM supports working with thermal cameras. In addition to the conventional infrared detector, it is also possible to receive data from the embedded detector of the thermal camera, provided that this function is integrated into the Drivers Pack. Any additional settings other than setting the embedded detector are not required.

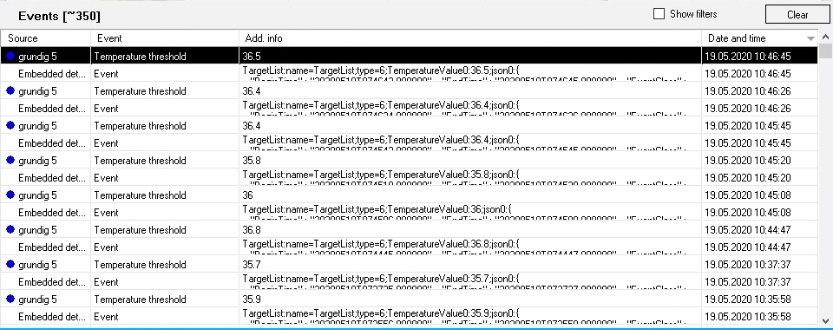

The temperature data received from the embedded detector are displayed in the event viewer:

• The Event event from the Embedded detection object contains metadata in a string format. You can further process this data using scripts.
• The Temperature threshold event from the Camera object shows the temperature value. You can set the temperature threshold in the web interface of the thermal camera.

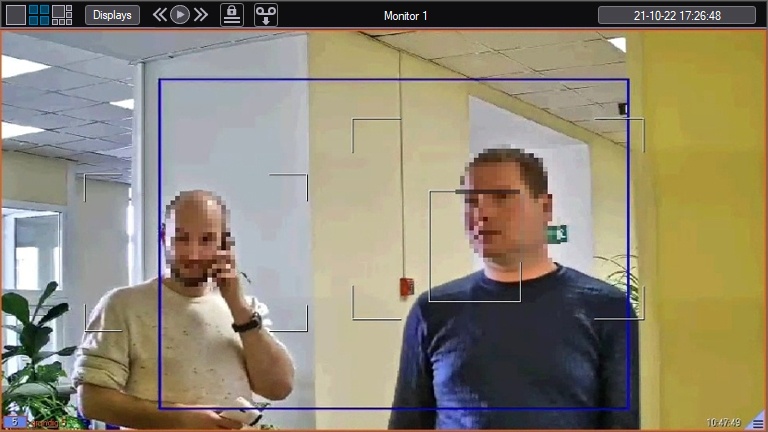

The face to which the temperature refers is shown with an outline in the video surveillance monitor:

The processing of obtained body temperature data is also implemented in Face PSIM (for more details about this feature, see AxxonSoft documentation repository).
