It is possible to gain incoming audio signals with the help of the software.

Note

If the power level of the audio signal varies over time, you can combine the audio signal gain with automatic gain control (see Setting up the automatic gain control for sound cards of Olha series).

To gain the audio signal, do the following:

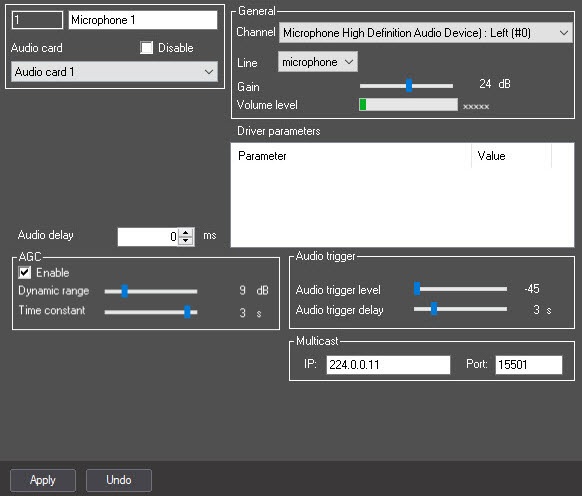

  1. Go to the settings panel of the Microphone system object.
  2. Feed the audio signal to the microphone. The power level of the incoming audio signal is displayed on the Volume level indicator.
  3. If necessary, move the Gain slider to the position corresponding to the required value of gain. The current value in dB is shown to the right of the slider.
  4. Repeat steps 2 and 3 until the required level of audio signal power is reached.
  5. Click the Apply button to save the changes.

Setting up the audio signal gain is complete.
