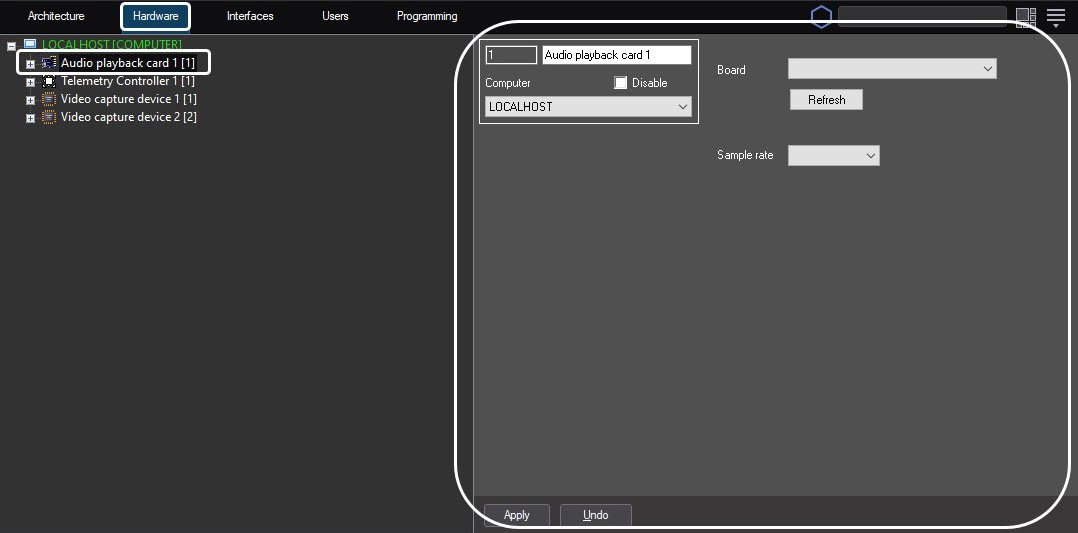

The Playback card object is registered on the basis of the Computer object in the Hardware tab of the System settings dialog box.

To configure the Audio playback card object, do the following:

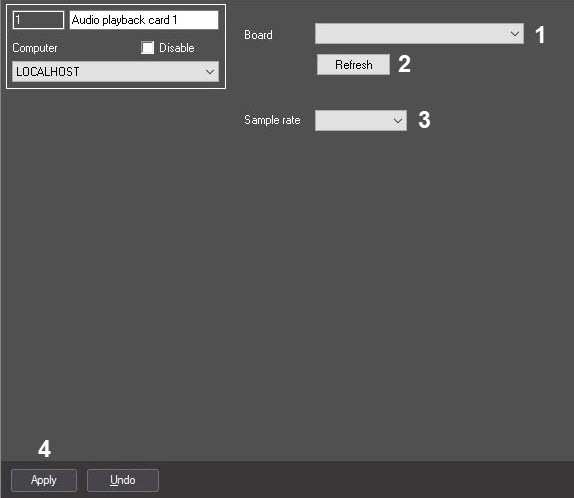

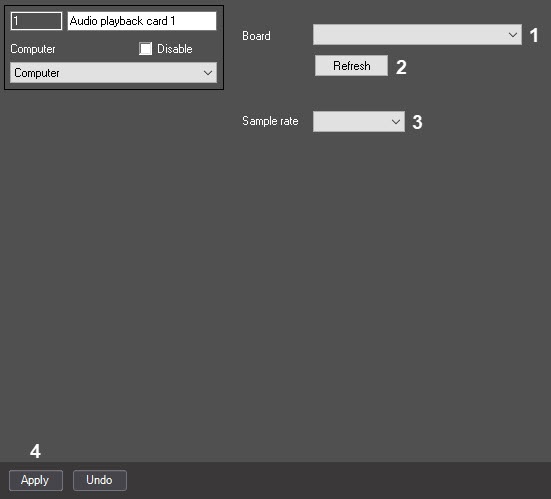

  1. Go to the settings panel of the Audio playback card object.

  2. Select the type of audio digitization device in the Board dropdown list (1).

    Note

     SoundBlaster, ADC video card, audio digitization USB devices, IP cameras digitization devices are used as audio digitization devices.
  3. Select the rate of audio digitization in the Sample rate dropdown list (3).
  4. To save the changes, click the Apply button (4).

Note

The Refresh button is for returning to previous settings of audio digitization device if new settings were not saved (2).

The Audio playback card object is now configured.
